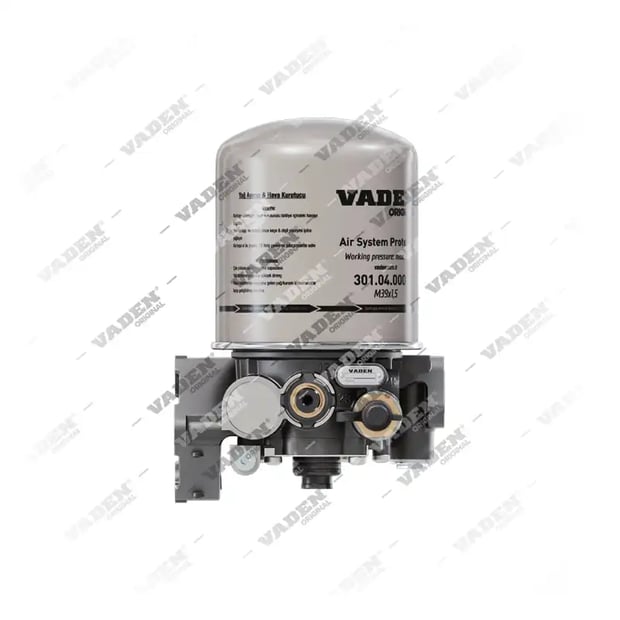

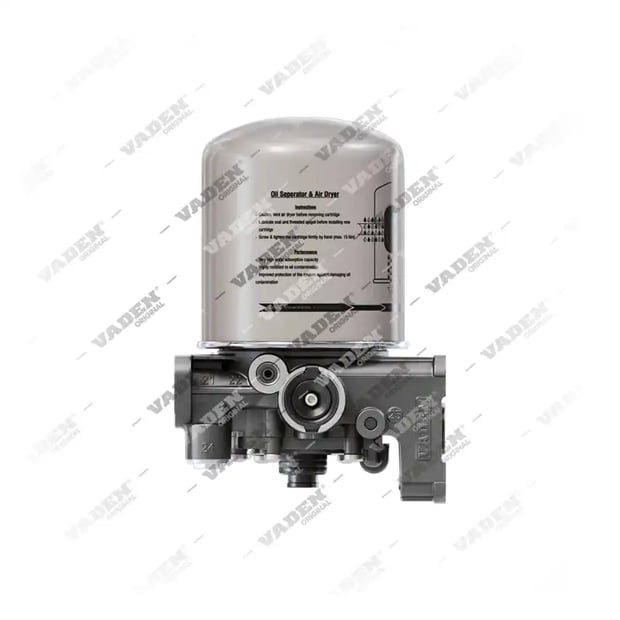

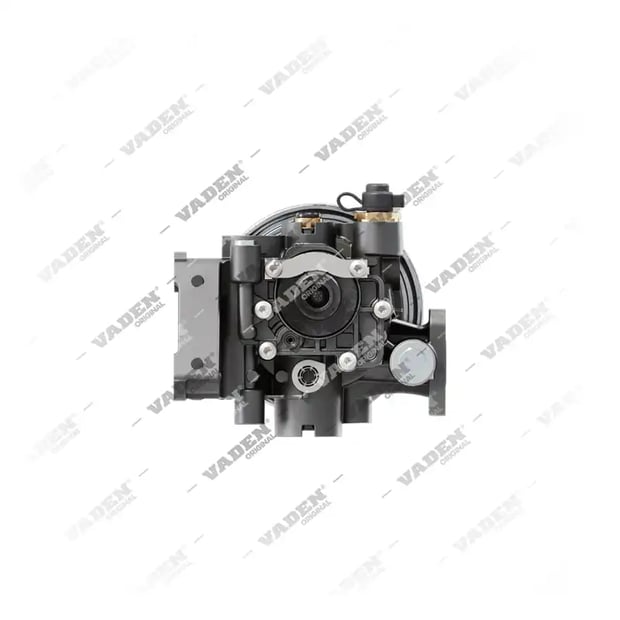

301.03.0078 KNORR-BREMSE Complete, Air Dryer Valve
301.03.0078
Summary
●Port 1: M22x1,5 ●Port 2: M12x1,5 ●Port 21: Ø20,5 ●Pressure: 10 BAR ●Port 22: M16x1,5 ●Port 23: M22x1,5 ●Port 24: M22x1,5 VOSS ●Port 25: M10x1
| EAN Code | 8699031080499 |
|---|
Ready to Order
Compatible OEM Codes
- KNORR-BREMSE LA 9017 K069280 K024635N50 K002739
Description
The air dryer valve is a critical component within the pneumatic brake system, responsible for removing moisture and contaminants from the compressed air stream to ensure reliable operation. This high-strength component is designed to maintain optimal pressure levels and protect downstream brake components from damage caused by moisture accumulation.
The 301.03.0078 is the OE equivalent of the KNORR-BREMSE K002739, K024635N50, K069280, and LA9017 used in heavy commercial vehicle systems. This product provides a precise fit for KNORR-BREMSE hardware, ensuring consistent performance under heavy-duty operating conditions. The technical specifications include Port 1 (M22x1,5), Port 2 (M12x1,5), Port 21 (Ø20,5), Port 22 (M16x1,5), Port 23 (M22x1,5), Port 24 (M22x1,5 VOSS), and Port 25 (M10x).
Maintenance professionals should ensure that all connection ports are inspected for any signs of wear or debris during installation to prevent air leaks. Proper integration with the existing pneumatic circuit is essential for maintaining the prescribed 10 BAR pressure level. Regular checks of the filter elements and port seals are recommended to extend the service life of the entire braking system.
The 301.03.0078 is the OE equivalent of the KNORR-BREMSE K002739, K024635N50, K069280, and LA9017 used in heavy commercial vehicle systems. This product provides a precise fit for KNORR-BREMSE hardware, ensuring consistent performance under heavy-duty operating conditions. The technical specifications include Port 1 (M22x1,5), Port 2 (M12x1,5), Port 21 (Ø20,5), Port 22 (M16x1,5), Port 23 (M22x1,5), Port 24 (M22x1,5 VOSS), and Port 25 (M10x).
Maintenance professionals should ensure that all connection ports are inspected for any signs of wear or debris during installation to prevent air leaks. Proper integration with the existing pneumatic circuit is essential for maintaining the prescribed 10 BAR pressure level. Regular checks of the filter elements and port seals are recommended to extend the service life of the entire braking system.
Technical Specifications
| Heater | ----- |
|---|---|
| Port 1 | M22x1,5 |
| Port 2 | M12x1,5 |
| Port 21 | Ø20,5 |
| Pressure | 10 BAR |
| Port 22 | M16x1,5 |
| Port 23 | M22x1,5 |
| Port 24 | M22x1,5 VOSS |
| Port 25 | M10x1 |
Other OEMs
KNORR-BREMSE
- LA9017
- LA 9017
- K069280
- K024635N50
- K002739
Related Products
Repair Kits
Products Used in
Vehicles Used
| Brand | Model | Model Type | Engine |
|---|---|---|---|
| KNORR-BREMSE | |||
| KNORR-BREMSE | |||
| KNORR-BREMSE | |||
| KNORR-BREMSE | |||
| KNORR-BREMSE | |||
| KNORR-BREMSE | |||
| KNORR-BREMSE | |||
| KNORR-BREMSE |
FAQ
What are the compatible OEM reference numbers for this part?
This product is compatible with the following OEM codes: K002739, K024635N50, K069280, LA9017.
What is the function of this air dryer valve in the braking system?
The complete air dryer valve filters moisture and impurities from compressed air to protect the pneumatic braking system from corrosion and failure.
Does this part meet heavy-duty requirements?
Yes, it is constructed with high-strength components designed to withstand demanding operating conditions in heavy commercial vehicles.
What are the specific port dimensions for installation?
The unit features several ports including M22x1,5 (Port 1 & 23), M12x1,5 (Port 2), M16x1,5 (Port 22), and a Ø20,5 (Port 21).
Which systems is this component compatible with?
This component is designed specifically for compatibility with KNORR-BREMSE pneumatic braking systems.
