1100 035 021 Single Cylinder, Air Compressor
1550 Visualized

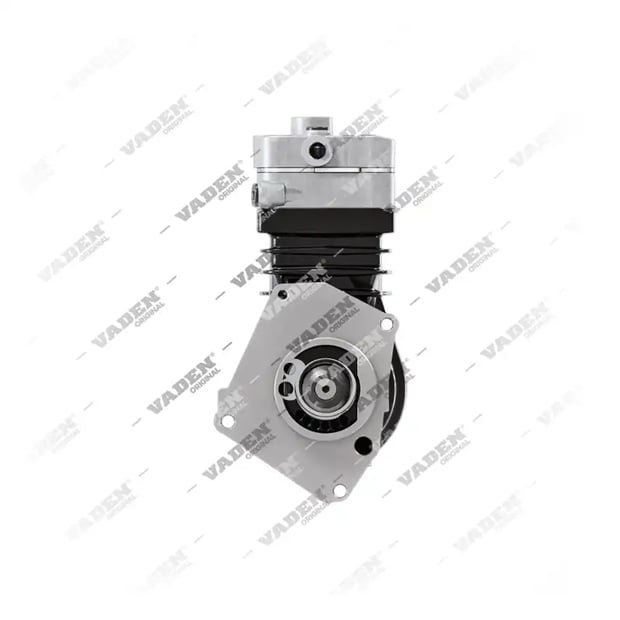

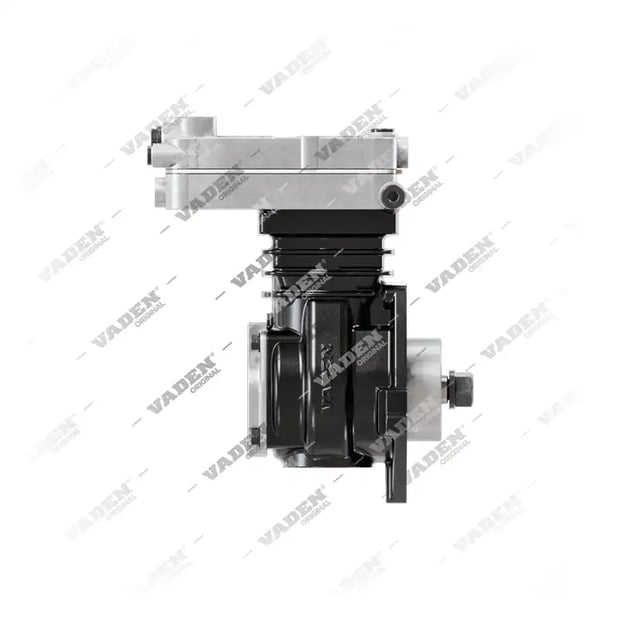

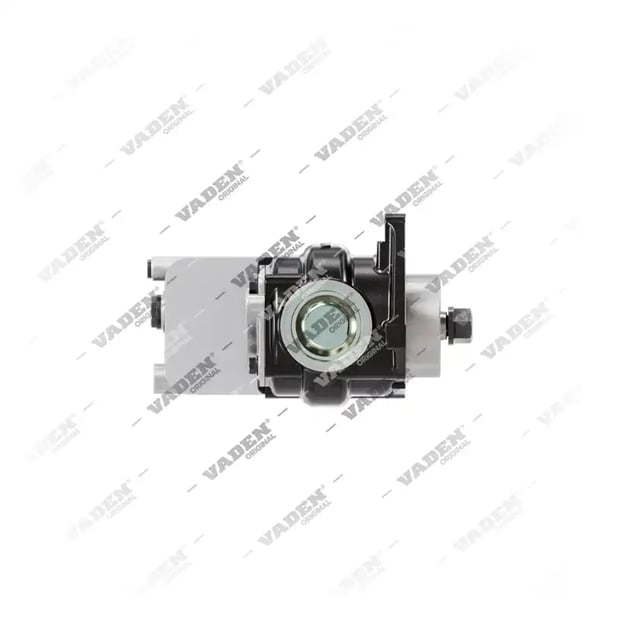

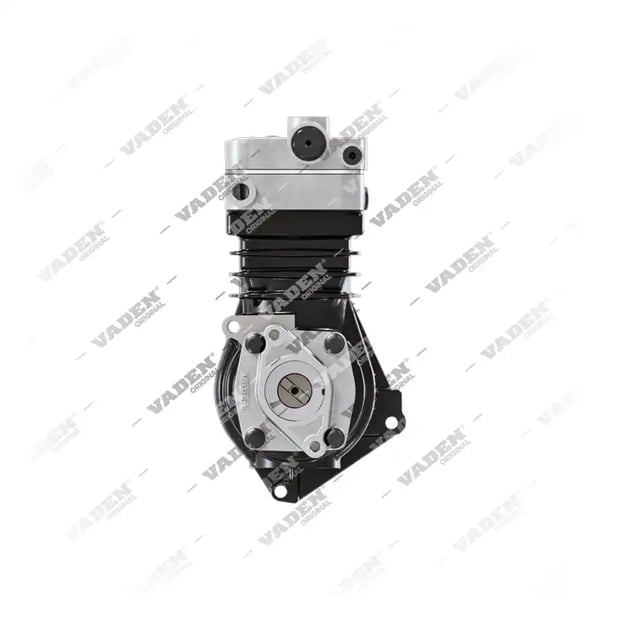

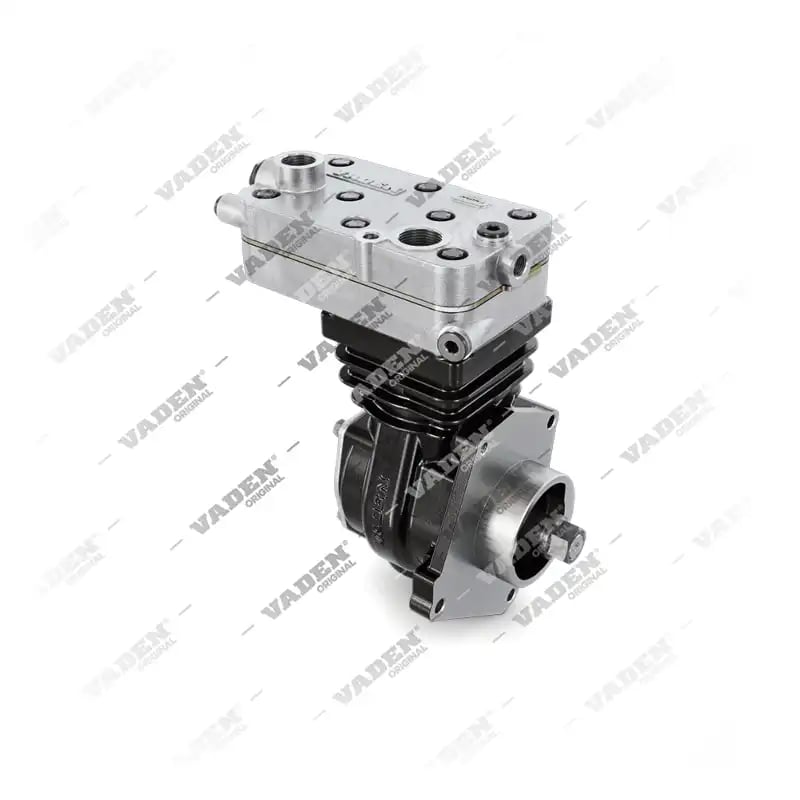

1100 035 021 MERCEDES BENZ Single Cylinder Air Compressor

1100 035 021

Summary

This single cylinder air compressor features a Ø85.00 mm cylinder bore and a 62 mm stroke with a 352cm³ swept volume. It includes an M26x1,5 air inlet/outlet and an M12x1,5 unloader port. Designed for water-cooled systems (W), it ensures reliable pneumatic performance for heavy-duty commercial vehicles.

EAN Code8699031064529
Ready to Order
Get Information
Share
WhatsApp Facebook X LinkedIn

Compatible OEM Codes

  • WABCO 906 130 14 15 SP1 412.352.002.0 SP1
  • MERCEDES BENZ 906 130 1615 SP1 4123520250 SP1

Description

This high-strength single cylinder air compressor is engineered to provide consistent pneumatic pressure within the braking system. Designed for heavy commercial vehicle applications, it features a water-cooled design with a precise Ø85.00 mm bore and a 62 mm stroke to maintain optimal operating temperatures and performance under demanding conditions.

The 1100 035 021 is the OE equivalent of the MERCEDES BENZ 4123520250SP1 and 9061301615SP1 air compressors used in compatible MERCEDES BENZ and WABCO systems. It also serves as a compatible replacement for WABCO 4123520020SP1 and 9061301415SP1. This component is essential for maintaining the integrity of the air brake system in heavy-duty commercial vehicles.

Technical specifications include an M26x1,5 air inlet and outlet port, alongside an M16x1,5 water port configuration. The assembly includes an ESS feature and a water-cooled valve plate to ensure long-term durability in professional workshop environments. Technicians should verify the port sizes and cooling requirements during installation to ensure a perfect fit.

Regular inspection of the air unloader port (M12x1,5) and the water circulation paths is recommended to prevent system failures. Maintaining high-strength components like this one ensures the reliability of the vehicle's pneumatic brake system.

Technical Specifications

Cylinder BoreØ85.00
Stroke62 mm
Swept Volume352cm³
Air Inlet PortM26x1,5
Air Outlet PortM26x1,5
Number of Cylinders1
Through DriveOK
Air Unloader PortM12x1,5
Water (W) or Air (A) CooledW
Water Inlet PortM16x1,5
Water Outlet PortM16x1,5
With ESS FeatureOK
Water Cooled Valve PlateOK

Other OEMs

MERCEDES BENZ

  • A9061304315SP1
  • A9061304315 SP1
  • A9061301615SP1
  • A9061301615 SP1
  • A9061301415SP1
  • A9061301415 SP1
  • A9061301315SP1
  • A9061301315 SP1
  • A4123520250SP1
  • A4123520020SP1
  • A4123520010SP1
  • 9061301615 SP1
  • 906.130.1615 SP1
  • 906.130.16.15 SP1
  • 906 130 16 15 SP1
  • 4123520020 SP1
  • 412.352.001.0 SP1
  • 906 130 1615 SP1
  • 4123520250 SP1

WABCO

  • 9061304315SP1
  • 9061301415SP1
  • 9061301315SP1
  • 906 130 43 15 SP1
  • 906 130 13 15 SP1
  • 4123520250SP1
  • 4123520020SP1
  • 4123520010SP1
  • 4123520010 SP1
  • 412.352.025.0 SP1
  • 906 130 14 15 SP1
  • 412.352.002.0 SP1

Related Products

Repair Kits

Similar Products

Vehicles Used

BrandModelModel TypeEngine
MERCEDES BENZ
WABCO

FAQ

What are the primary OEM cross-references for this part?
This part is compatible with MERCEDES BENZ 4123520250SP1, 9061301615SP1, WABCO 4123520020SP1, and WABCO 9061301415SP1.
Does this air compressor require water cooling?
Yes, this is a water-cooled (W) single cylinder unit designed for integration into specific heavy commercial vehicle systems.
What are the main technical dimensions of this unit?
The unit features an Ø85.00 mm cylinder bore, a 62 mm stroke, and a total swept volume of 352cm³.
Which vehicle systems is this component compatible with?
It is designed for MERCEDES BENZ and WABCO systems within the heavy commercial vehicle segment.
What port sizes are used for air and water connections?
The air inlet/outlet ports are M26x1,5, the unloader port is M12x1,5, and the water ports are M16x1,5.
