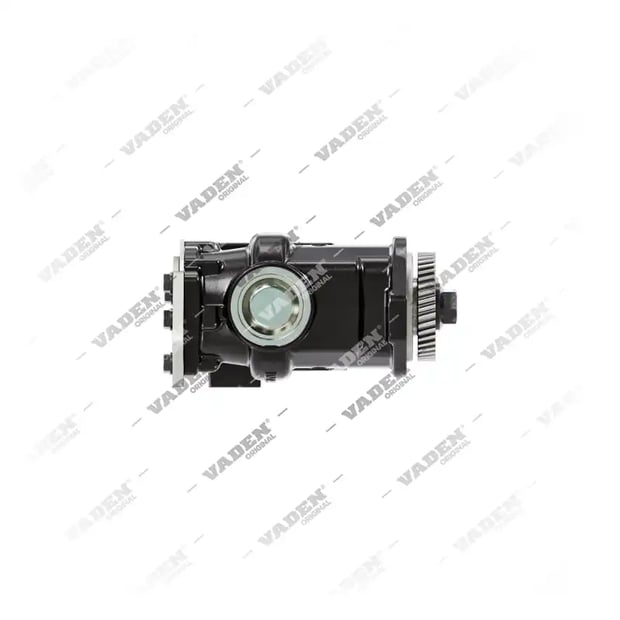

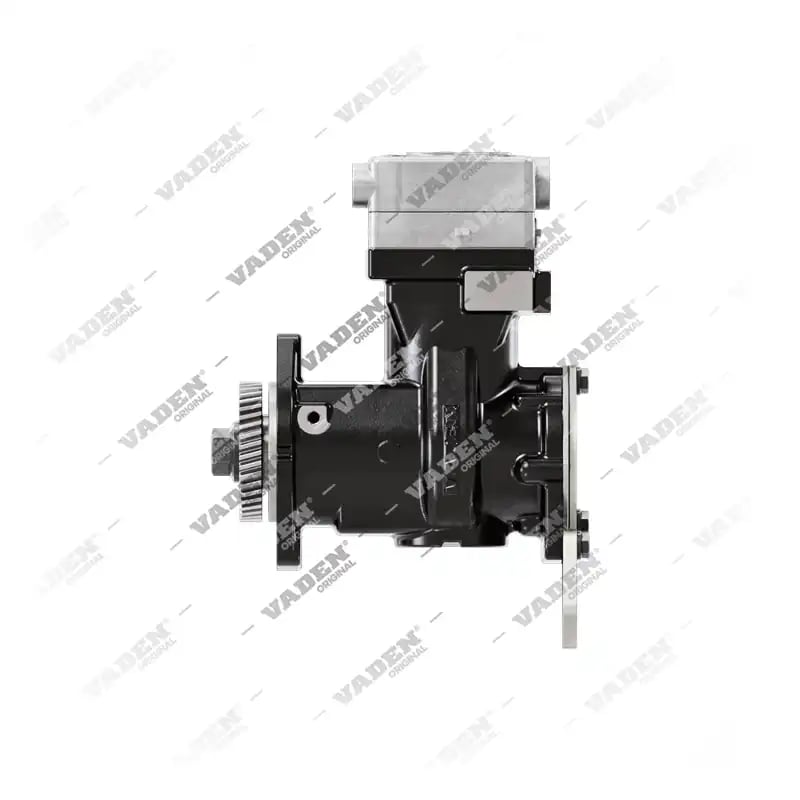

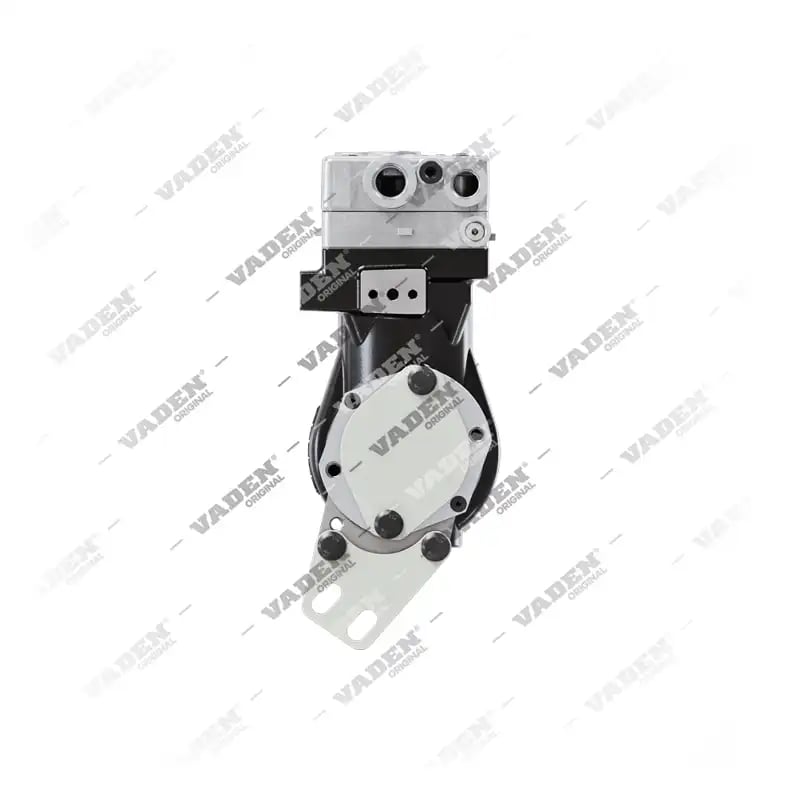

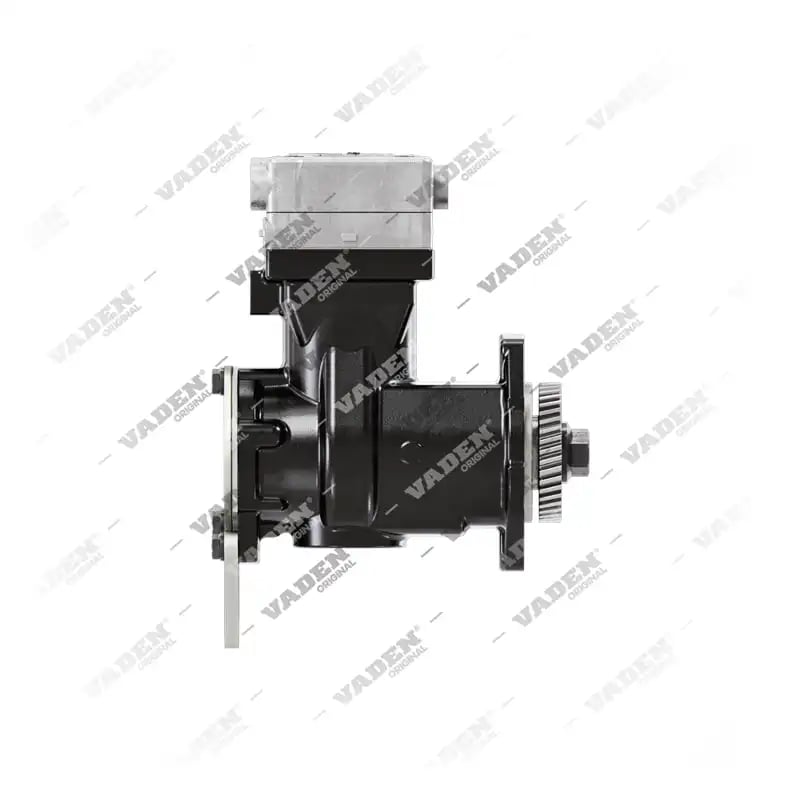

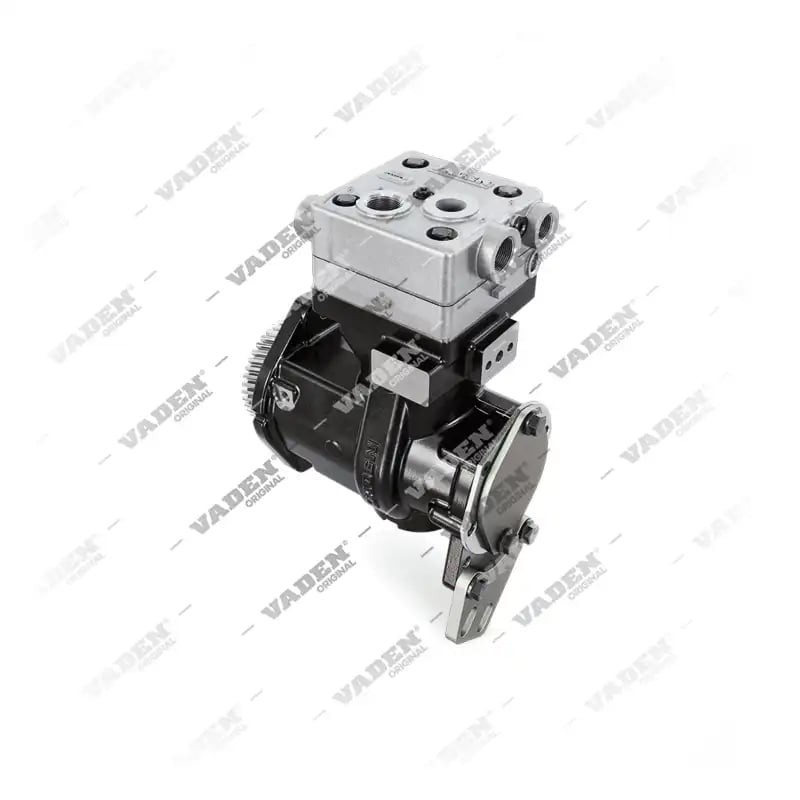

2500 040 002 CUMMINS Single Cylinder, Air Compressor
2500 040 002
Summary
The VADEN ORIGINAL 2500 040 002 is a high-strength component featuring a Ø85.00 Cylinder Bore and 56 mm Stroke. This Single Cylinder, Air Compressor is designed for heavy-duty performance with a 318cm³ swept volume and water cooling support, ensuring compatibility with CUMMINS and WABCO systems.
| EAN Code | 8699031064147 |
|---|
Ready to Order
Compatible OEM Codes
- WABCO 911 155 511 0
- CUMMINS 3357113
Description
This high-strength single cylinder air compressor is engineered to provide consistent pneumatic pressure within the vehicle's braking system. Designed for heavy commercial vehicle applications, it features a robust construction with a cylinder bore of Ø85.00 and a stroke of 56 mm to maintain optimal operational efficiency.
The 2500 040 002 is the OE equivalent of the CUMMINS 3357113 and WABCO 9111555110 air compressors used in heavy-duty engine systems. This component is engineered to meet strict compatibility requirements for CUMMINS and WABCO systems, ensuring reliable performance in demanding environments. It includes an air unloader port of M10x1 and is designed for water-cooled operation via a 1/2”-14 NPT inlet and outlet.
For workshop technicians and fleet managers, this part offers a precise fit with its specific dimensions, including a 3/4”-14 NPT air inlet and outlet port. Regular inspection of the water cooling lines and port connections is recommended to ensure the longevity of the compressor during service intervals. Consult your authorized distributor for detailed installation guidance.
The 2500 040 002 is the OE equivalent of the CUMMINS 3357113 and WABCO 9111555110 air compressors used in heavy-duty engine systems. This component is engineered to meet strict compatibility requirements for CUMMINS and WABCO systems, ensuring reliable performance in demanding environments. It includes an air unloader port of M10x1 and is designed for water-cooled operation via a 1/2”-14 NPT inlet and outlet.
For workshop technicians and fleet managers, this part offers a precise fit with its specific dimensions, including a 3/4”-14 NPT air inlet and outlet port. Regular inspection of the water cooling lines and port connections is recommended to ensure the longevity of the compressor during service intervals. Consult your authorized distributor for detailed installation guidance.
Technical Specifications
| Cylinder Bore | Ø85.00 |
|---|---|
| Stroke | 56 mm |
| Swept Volume | 318cm³ |
| Air Inlet Port | 3/4”-14 NPT |
| Air Outlet Port | 3/4”-14 NPT |
| Number of Cylinders | 1 |
| Through Drive | OK |
| Air Unloader Port | M10x1 |
| Water (W) or Air (A) Cooled | W |
| Water Inlet Port | 1/2”-14 NPT |
| Water Outlet Port | 1/2”-14 NPT |
| With ESS Feature | OK |
| Weight | 19,2 KG |
Other OEMs
CUMMINS
- 3357113
WABCO
- 9111555110
- 911.155.511.0
- 911 155 511 0
Related Products
Repair Kits
Similar Products
Vehicles Used
| Brand | Model | Model Type | Engine |
|---|---|---|---|
| CUMMINS | |||
| WABCO |
FAQ
What are the compatible OEM reference codes for this compressor?
This product is compatible with the following OEM numbers: CUMMINS 3357113, WABCO 9111555110.
Does this air compressor support water cooling?
Yes, this single cylinder air compressor is designed for water-cooled applications with specific inlet and outlet ports provided.
What are the main technical specifications of this unit?
The unit features a Ø85.00 cylinder bore, a 56 mm stroke, and a swept volume of 318cm³, making it suitable for heavy-duty pneumatic systems.
Which vehicle systems is this part compatible with?
This component is designed to work with CUMMINS and WABCO systems commonly found in heavy commercial vehicles.
Is this part suitable for heavy-duty commercial applications?
Yes, it is engineered using high-strength components specifically for the heavy commercial vehicle sector to ensure durability.
