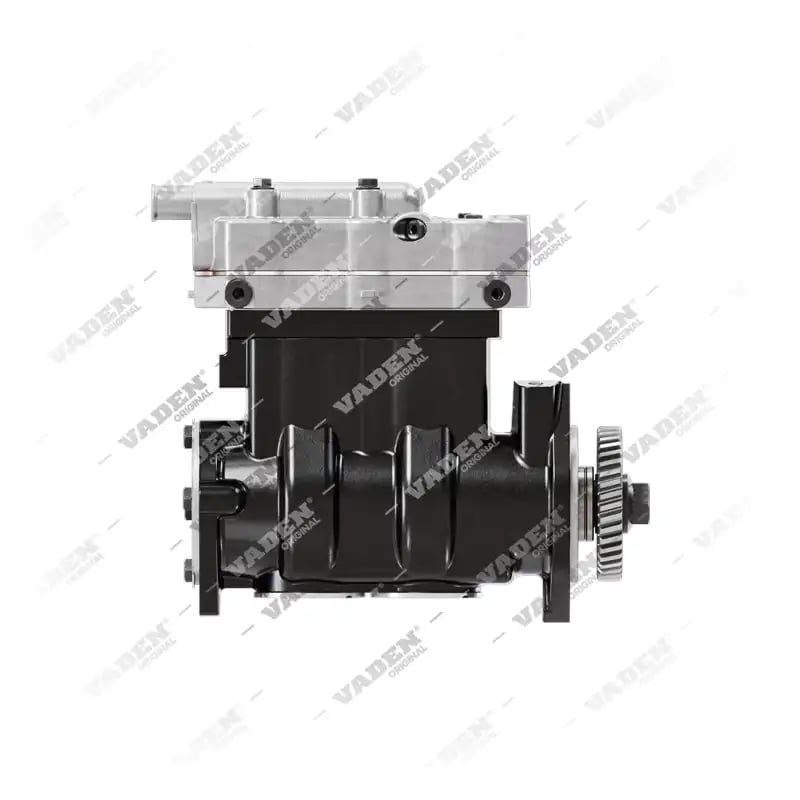

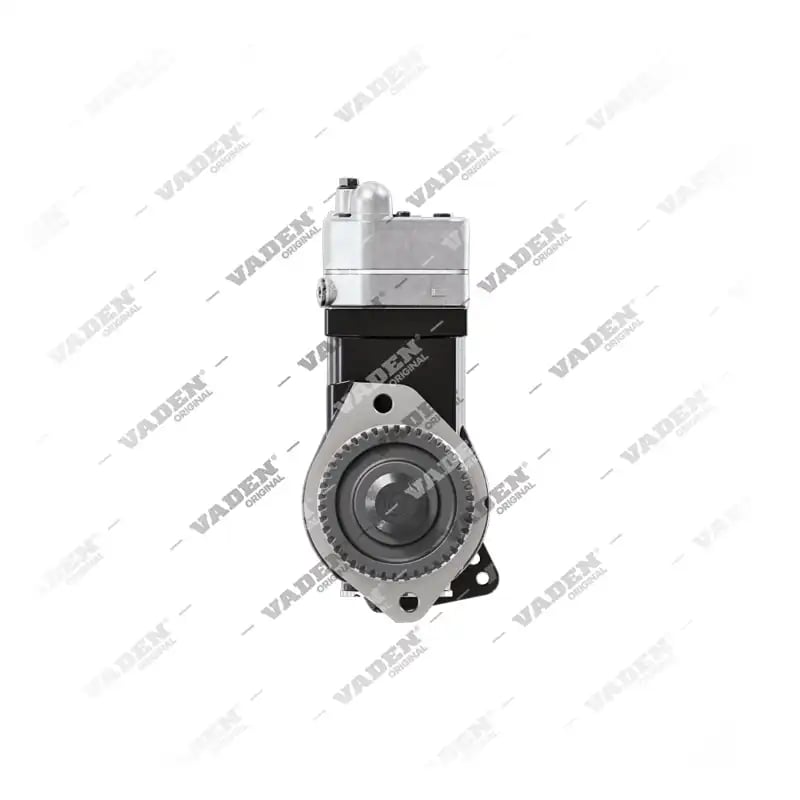

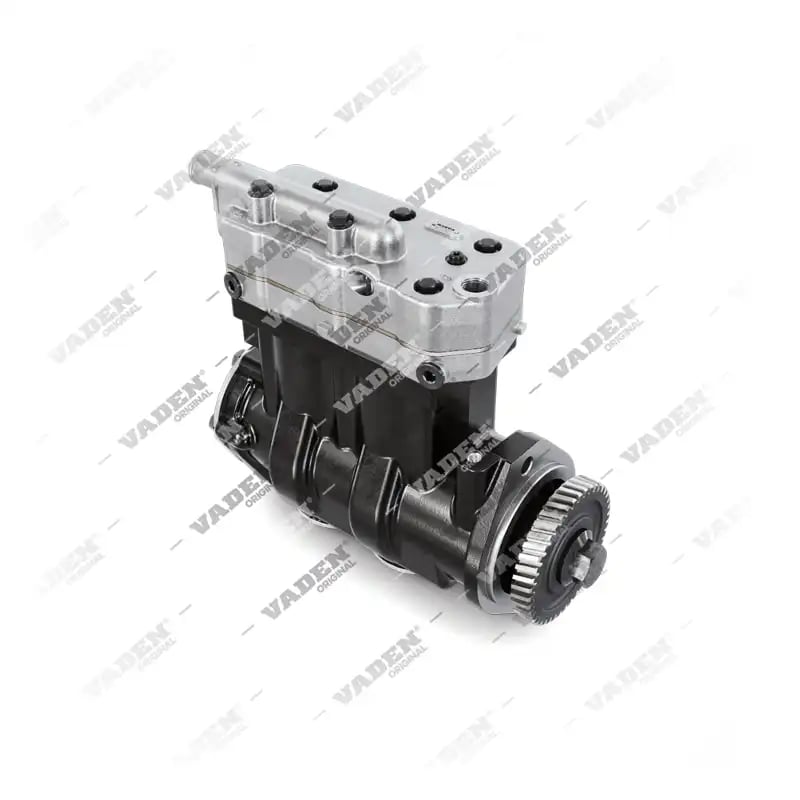

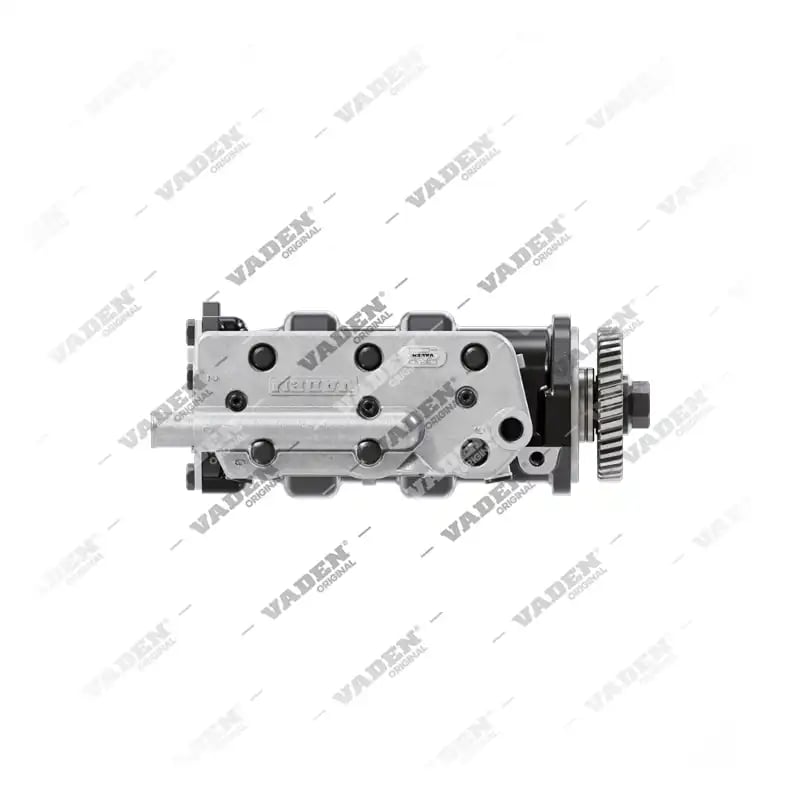

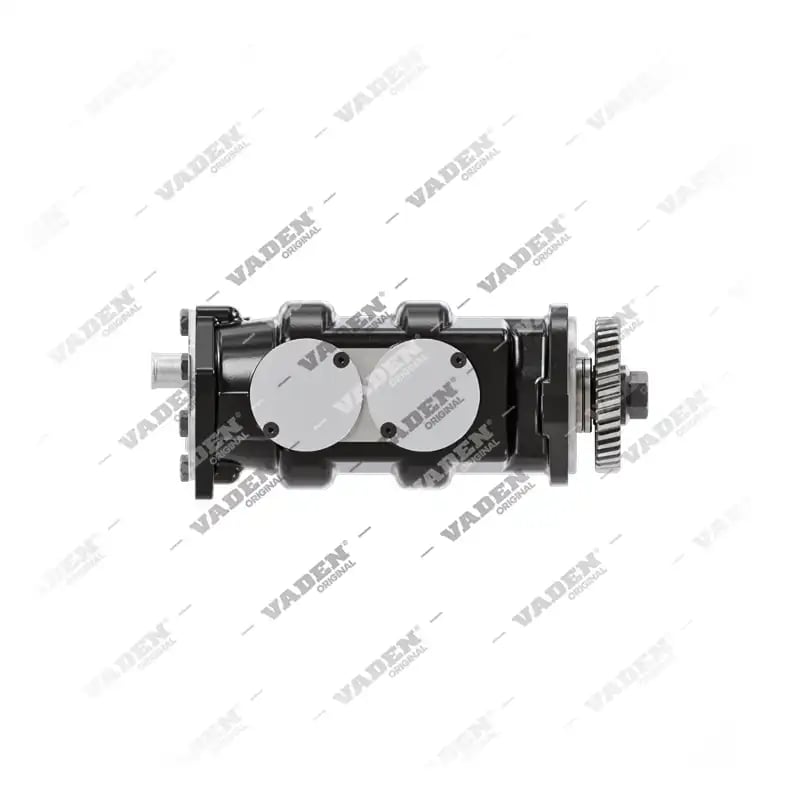

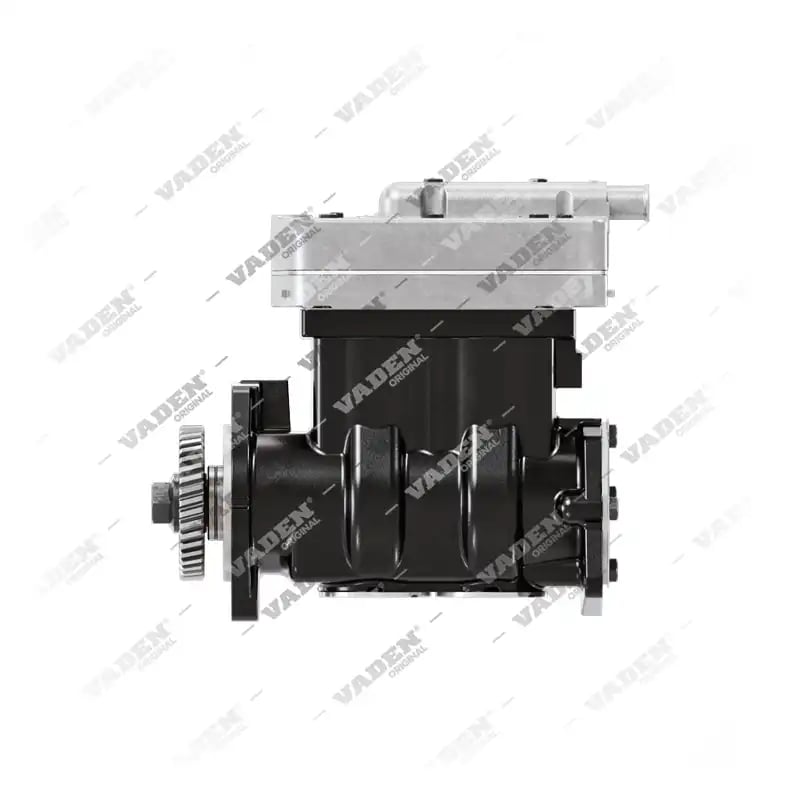

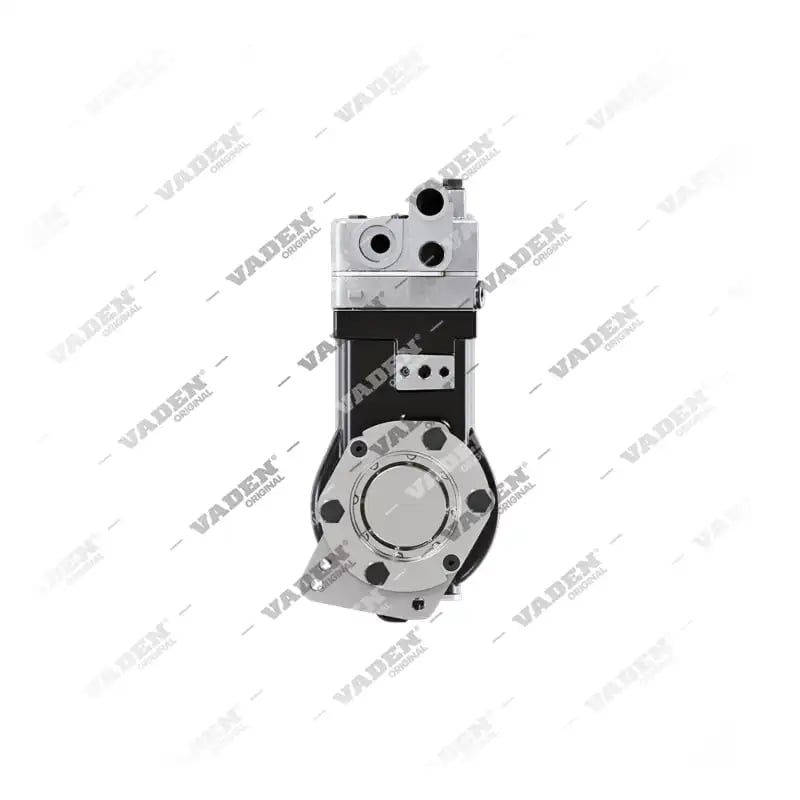

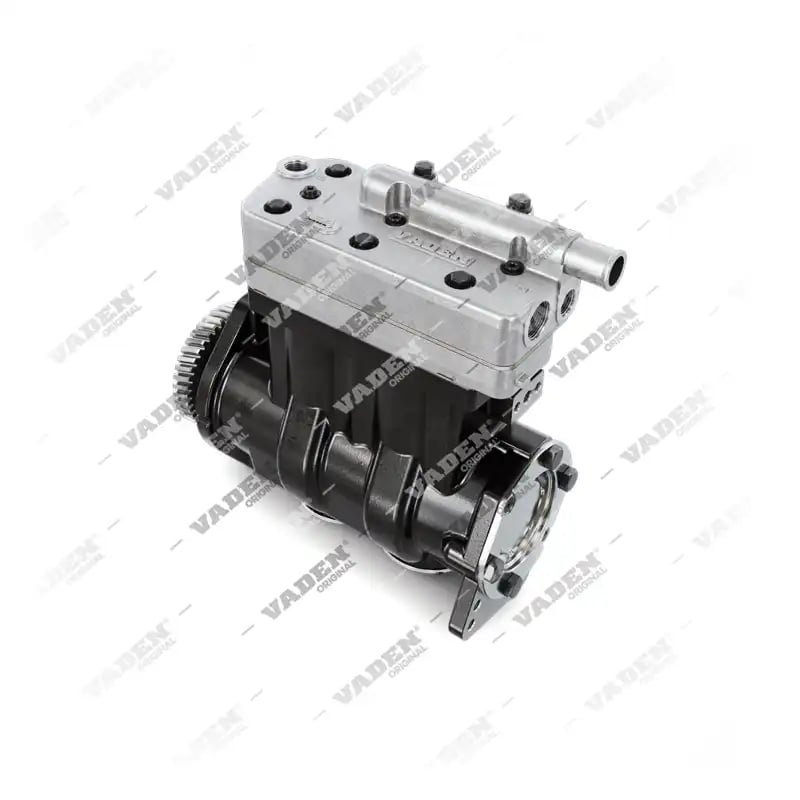

1900 110 001 Twin Cylinder, Air Compressor

This heavy-duty Twin Cylinder, Air Compressor is engineered to provide consistent air pressure for critical braking systems in heavy commercial vehicles. Designed with a robust architecture, it ensures optimal pneumatic performance through precise engineering of its two-cylinder system and water-cooling functionality.

Specifically, the 1900 110 001 is the OE-equivalent of the WABCO 911 516 500 0 twin cylinder air compressor used in CUMMINS compatible engine systems. This component is essential for maintaining stable air reservoir levels in heavy-duty transport applications where reliability is non-negotiable.

Technical specifications include a Ø75.00mm cylinder bore and a 56mm stroke to achieve a swept volume of 495cm³. The unit is water-cooled, utilizing a 3/4-16 UNF inlet and outlet port configuration to manage thermal loads during high-demand operation. Workshop technicians should verify the M27x2 air outlet and M10x1 unloader port compatibility during assembly to ensure seamless integration with existing pneumatic lines.

Maintaining proper cooling system integrity around this compressor is vital for preventing overheating and ensuring the longevity of the internal valve plate and cylinders.
