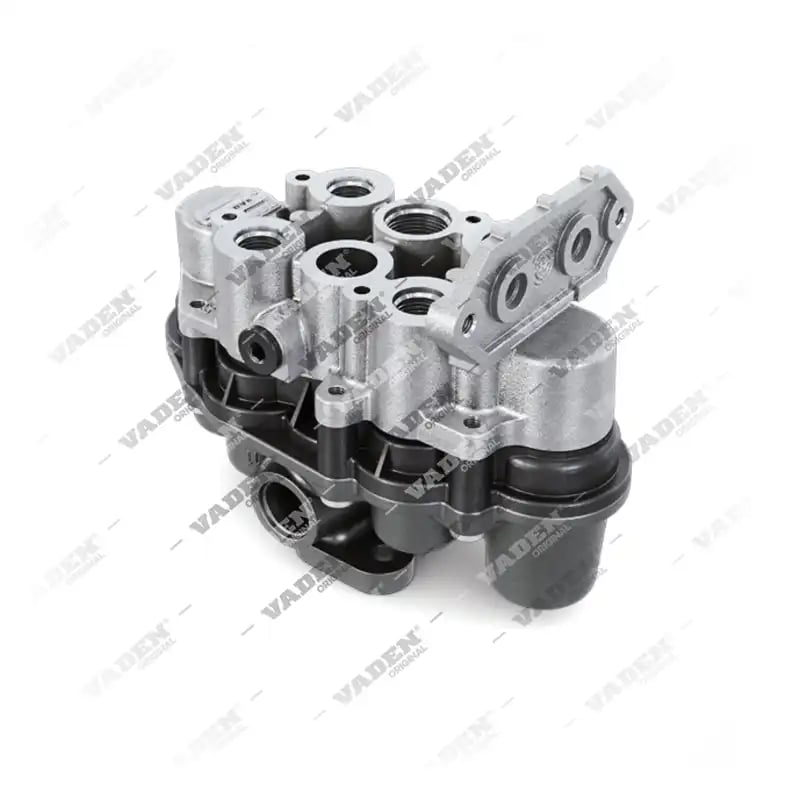

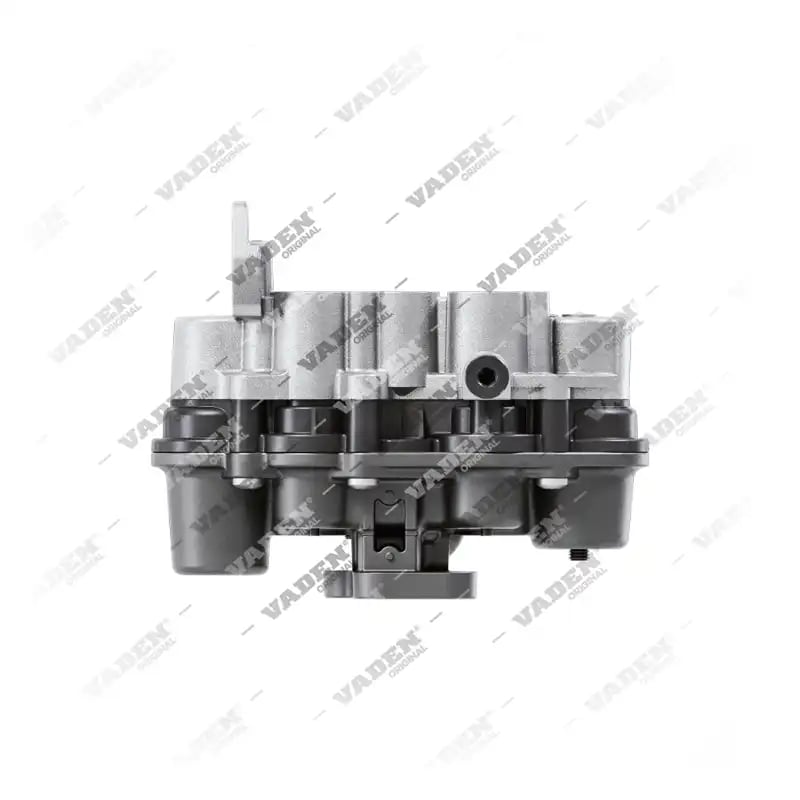

303.02.0060 Compatible Multi-circuit Protection Valve
303.02.0060
Summary
This multi-circuit protection valve is engineered for heavy commercial vehicle brake systems. It features specialized port configurations including M16x1,5 and M22x1,5 connections, with opening pressures ranging from 7.5 BAR to 8 BAR to ensure precise pneumatic control. Equivalent to OE Knorr-Bremse AE4516S.
| EAN Code | 8683457008243 |
|---|
Ready to Order
Compatible OEM Codes
-
KNORR-BREMSE
- AE 4516 S
Description
This multi-circuit protection valve plays a critical role in the pneumatic brake system of heavy commercial vehicles. By managing air pressure across different circuits, it ensures that a leak in one line does not lead to a total loss of braking capability, maintaining essential safety standards during operation.
The component is designed to work within complex braking architectures and is compatible with Knorr-Bremse systems. It features specific pressure thresholds, such as an 8 BAR opening pressure for Port 24 and 7.5 BAR for Ports 21, 22, and 23, ensuring reliable circuit isolation.
For workshop technicians performing maintenance, checking the thread integrity of the M16x1,5 and M22x1,5 ports is essential during installation. Ensuring the closing pressure remains within the specified 6.5 BAR range is vital for the correct functional performance of the entire pneumatic circuit.
Consult your authorized distributor.
The component is designed to work within complex braking architectures and is compatible with Knorr-Bremse systems. It features specific pressure thresholds, such as an 8 BAR opening pressure for Port 24 and 7.5 BAR for Ports 21, 22, and 23, ensuring reliable circuit isolation.
For workshop technicians performing maintenance, checking the thread integrity of the M16x1,5 and M22x1,5 ports is essential during installation. Ensuring the closing pressure remains within the specified 6.5 BAR range is vital for the correct functional performance of the entire pneumatic circuit.
Consult your authorized distributor.
OE cross-reference
303.02.0060 (Multi-circuit Protection Valve) is the equivalent of the Knorr-Bremse OE number. This part directly replaces Knorr-Bremse OE number AE4516S.Technical Specifications
| Port 21 | M16x1,5 |
|---|---|
| Port 22 | M16x1,5 |
| Port 23 | M16x1,5 |
| Port 24 | M16x1,5 |
| Port 26 | M22x1,5 |
| Opening Pressure 21 | 7,5 BAR |
| Opening Pressure 22 | 7,5 BAR |
| Opening Pressure 23 | 7,5 BAR |
| Opening Pressure 24 | 8 BAR |
| Closing Pressure 21/22 | 6,5 BAR |
| Closing Pressure 23/24 | 6,5 BAR |
Other OEMs
KNORR-BREMSE
- AE4516S
- AE 4516 S
Related Products
Repair Kits
Compatible Vehicles
| Brand | Model | Model Type | Engine |
|---|---|---|---|
| KNORR-BREMSE |
FAQ
What is the primary function of this multi-circuit protection valve?
It serves to isolate different air brake circuits, ensuring that if one circuit loses pressure due to a leak, the others remain functional to maintain braking safety.
What are the port specifications for this component?
The unit features several ports with M16x1,5 threading and one M22x1,5 port to accommodate various pneumatic line configurations.
How do I know if the opening pressure is correct?
The component is calibrated with specific opening pressures: 7.5 BAR for ports 21, 22, and 23, and 8 BAR for port 24.
What is the typical closing pressure for these valves?
The closing pressure for both the 21/22 and 23/24 port groups is specified at 6.5 BAR to ensure proper circuit resetting.
What are the OE reference numbers of this part?
303.02.0060 directly replaces Knorr-Bremse OE number AE4516S.
