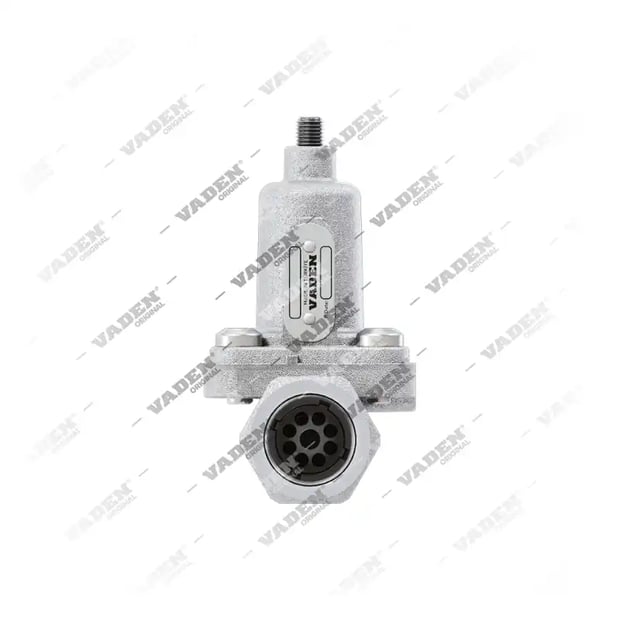

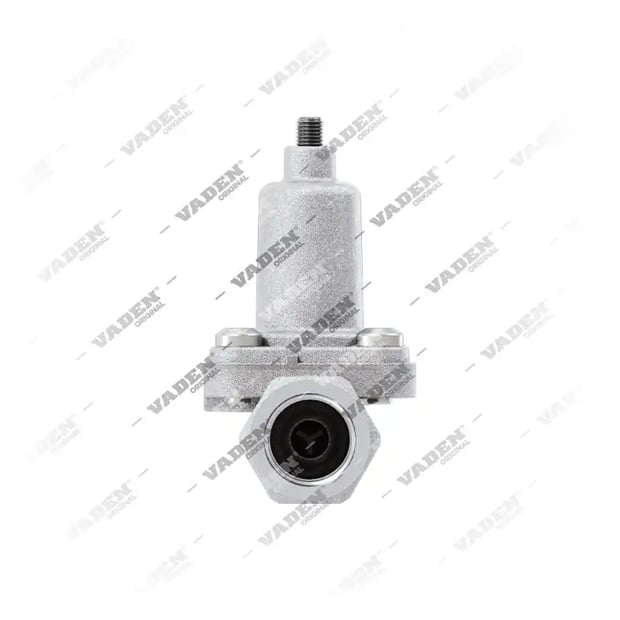

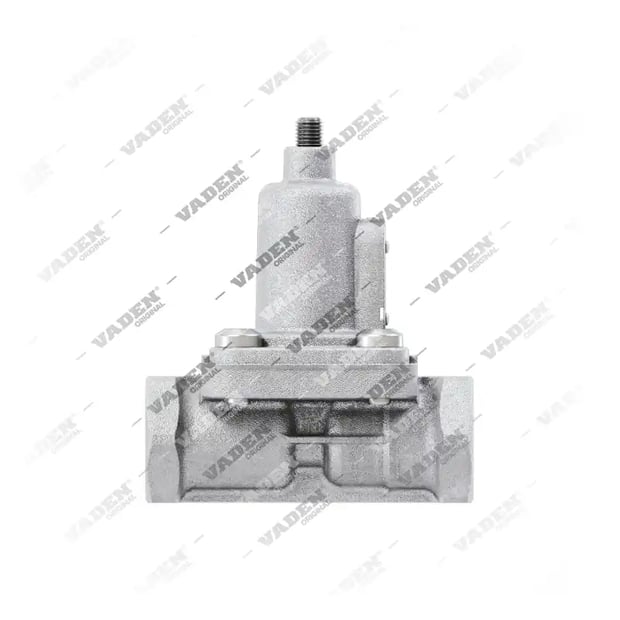

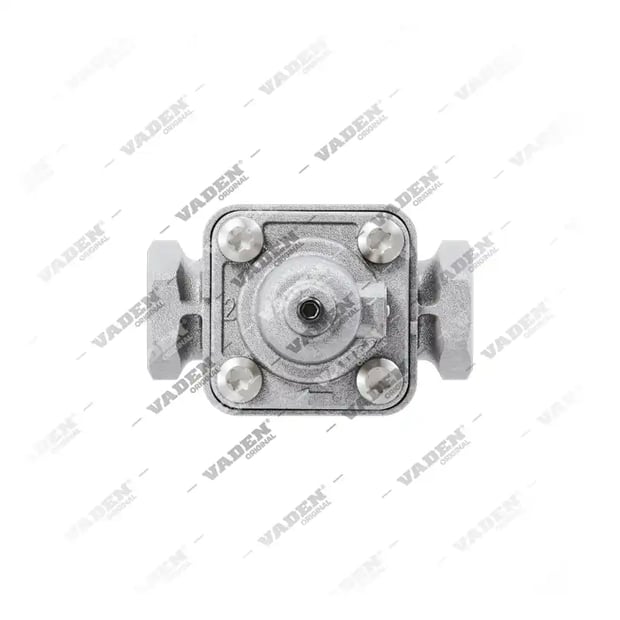

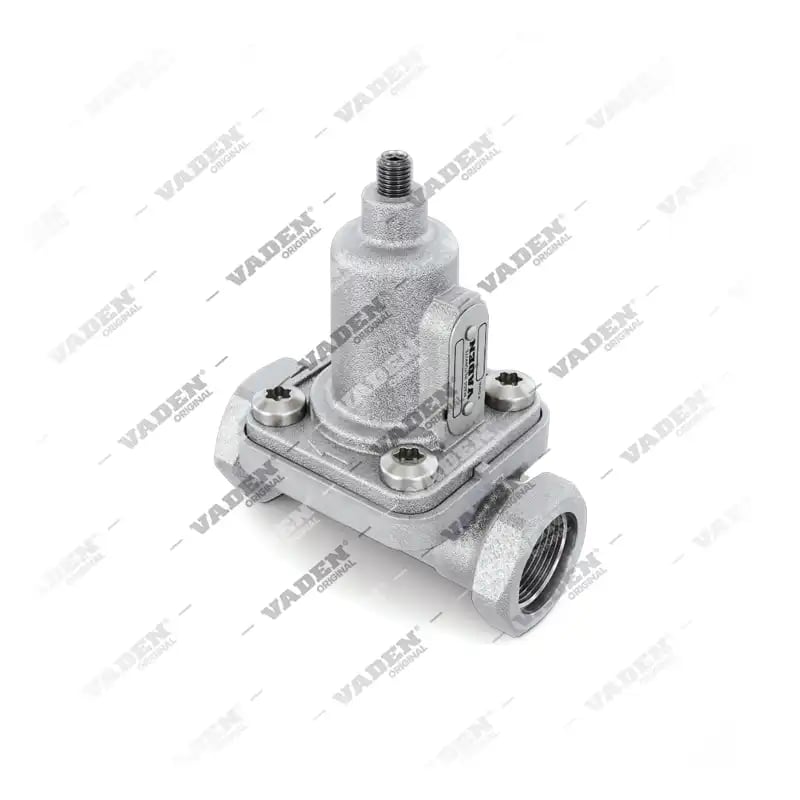

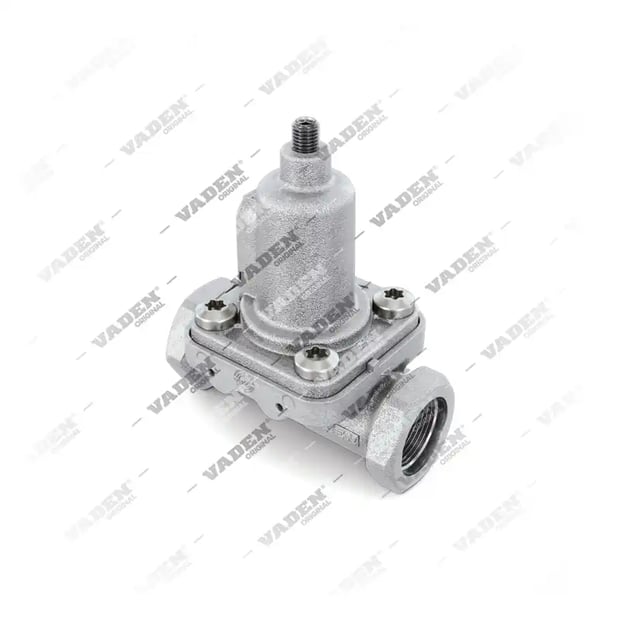

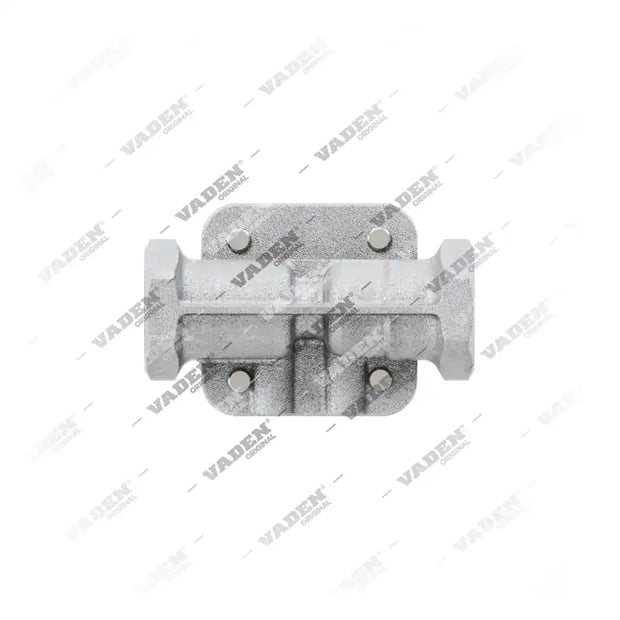

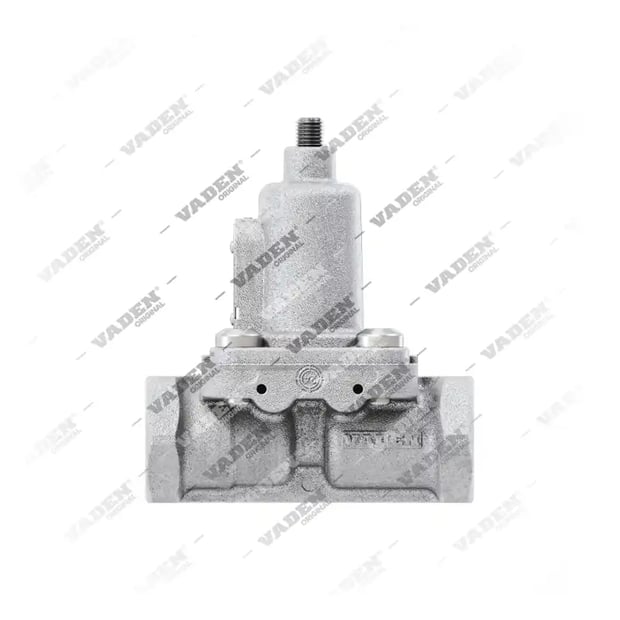

301.07.0148 Volvo Compatible Pressure Limiting Valve

What does a pressure limiting valve do?

This pressure limiting valve plays a critical role in the pneumatic brake system of heavy commercial vehicles by regulating air pressure levels. Utilizing a high-strength component design, it functions to maintain optimal operating pressures within the braking and suspension circuits, ensuring consistent performance under heavy loads.

Vehicle and engine compatibility

This specific component is engineered for compatibility with various Volvo models including the F10, F12, F7, FL10, FL12, N10, N12, NL10, NL12, B10B, B10M, and B12. It is also fitted to DAF, Iveco, MAN, Renault Trucks, and other heavy-duty vehicle applications. This valve ensures the pneumatic system operates within the specified 4-0.3 Bar range to prevent overpressure scenarios.

Installation and maintenance guidance

For professional workshop technicians, installation requires careful attention to the M22x1.5 port connections to ensure a leak-free seal. Regular inspection of the return line and port integrity is recommended during routine maintenance intervals to prevent system pressure fluctuations or air leaks in the braking circuit.

System performance and selection

When replacing this component, verify that the existing pneumatic lines are compatible with the M22x1.5 threading to ensure a correct fitment within the vehicle's air brake architecture.

OE cross-reference

301.07.0148 (Pressure Limiting Valve) is the equivalent of the Benalu, DAF, Goldhofer, Iveco, MAN, Renault Trucks, Van Hool, Volvo and WABCO OE numbers. This part directly replaces Benalu OE number 605304600. It also replaces DAF OE numbers 735430, 811669, 818960, Goldhofer OE number 155672, Iveco OE number 500006078, MAN OE number 90810196875, Renault Trucks OE numbers 24771019, 5021170099, Van Hool OE number 637205980, Volvo OE numbers 272509, 6213586 and WABCO OE number 4341000800.
