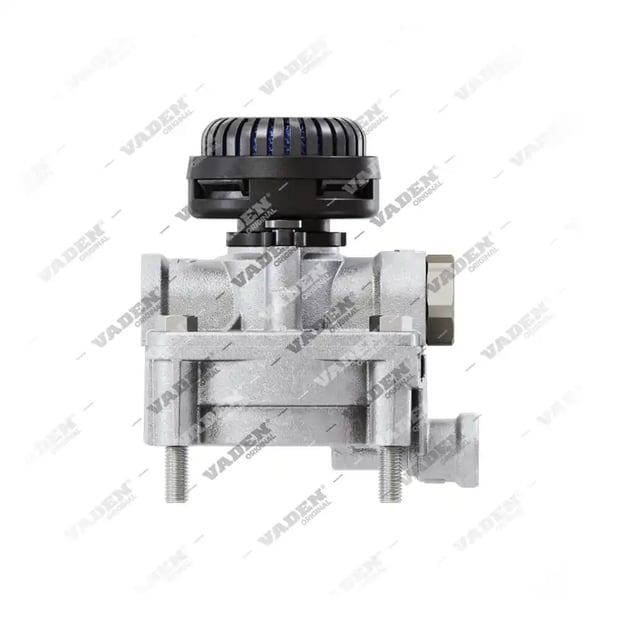

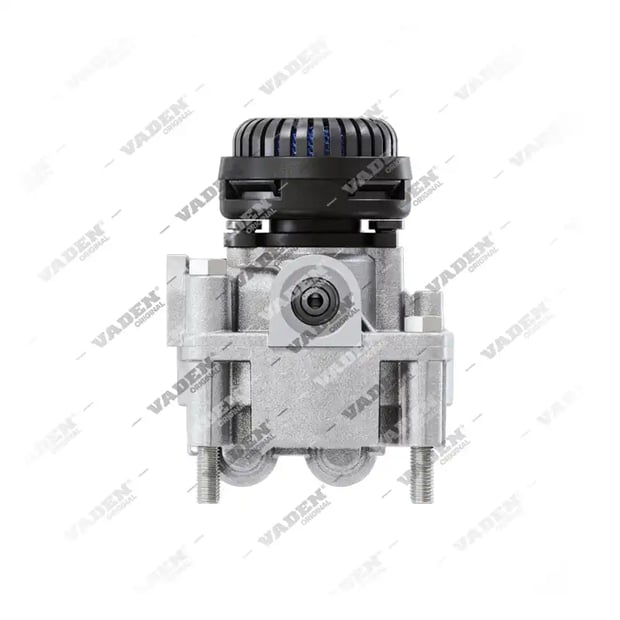

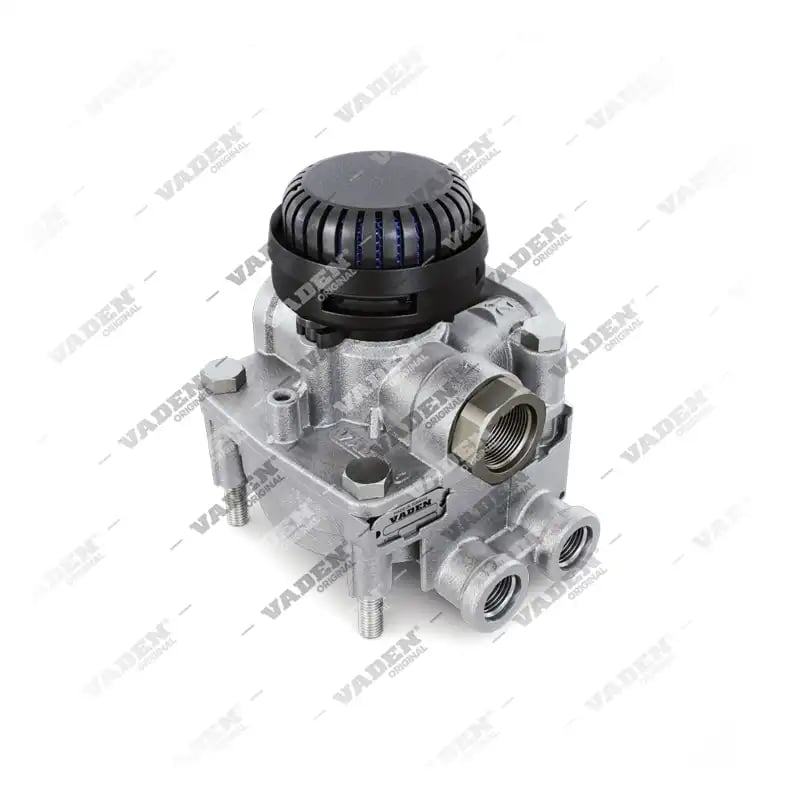

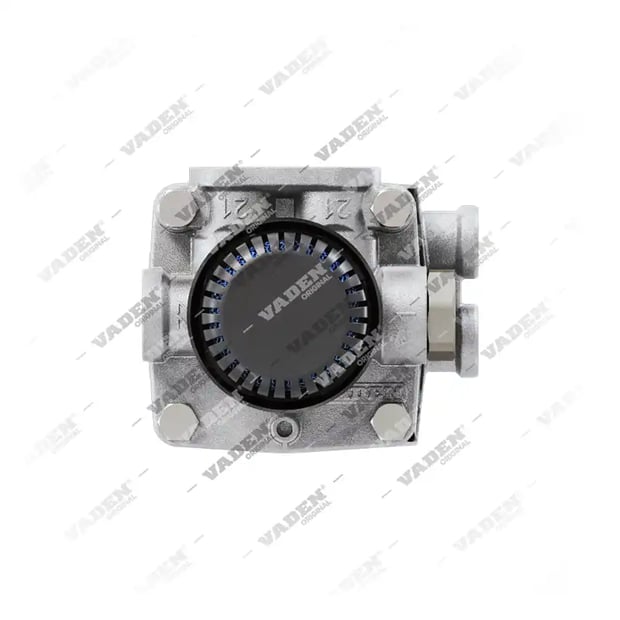

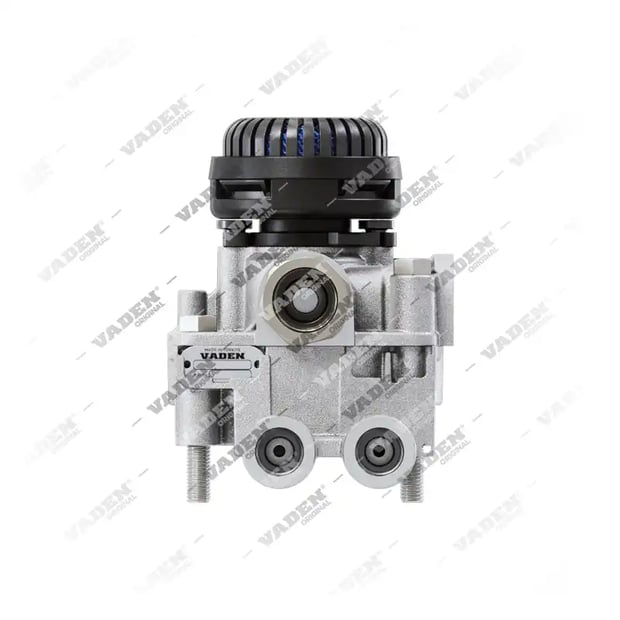

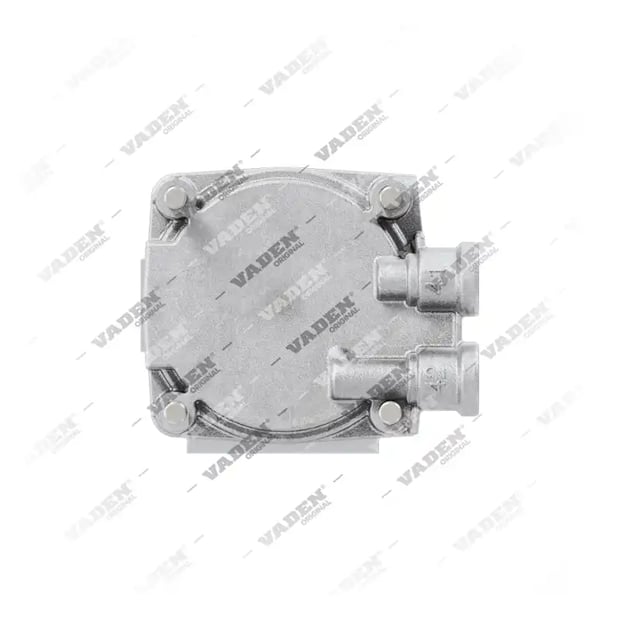

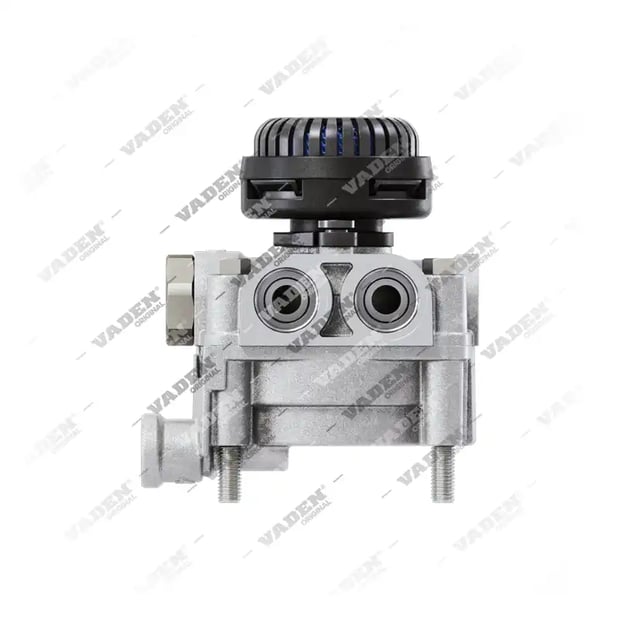

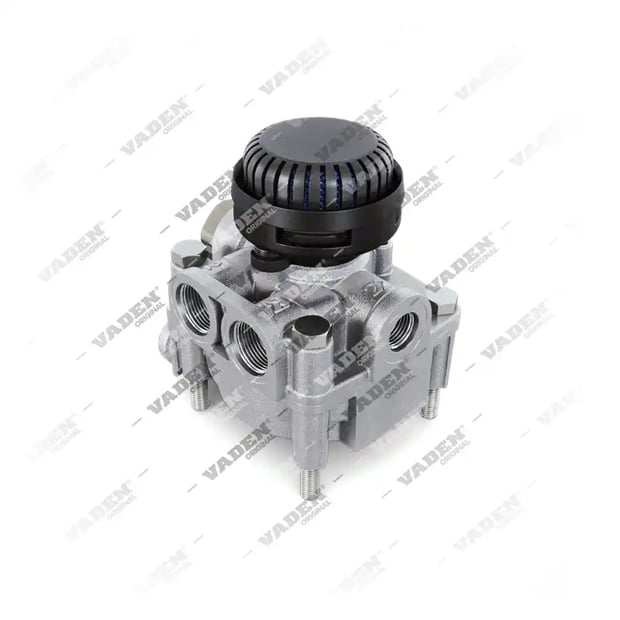

303.01.0017 Relay Valve — DAF Compatible
303.01.0017
The Vaden Original 303.01.0017 is a heavy-duty Relay Valve designed for precise pneumatic control. Features include: Port 1: M22x1,5 VOSS; Port 21: M22x1,5 VOSS; Port 22: M16x1,5 VOSS; Port 41: M16x1,5 VOSS; Port 42: M16x1,5 VOSS. Maximum operating pressure is 13 BAR.
| EAN Code | 8683457000766 |
|---|
Description
The heavy-duty Relay Valve is a critical component within the pneumatic brake system, ensuring the rapid and precise modulation of air pressure to maintain braking efficiency. Designed for durability in demanding environments, this component utilizes high-strength components to meet the rigorous standards of the heavy commercial vehicle sector.
303.01.0017 is the OE-equivalent Relay Valve used in DAF (1518270), RENAULT TRUCKS (5010260705), VOLVO (25328737), and WABCO (973 011 206 0) systems. This part is engineered to maintain seamless compatibility with these major manufacturers and their heavy-duty truck architectures.
For workshop technicians performing maintenance or assembly, this valve features specific port configurations including M22x1,5 VOSS and M16x1,5 VOSS threads to ensure a secure fit. It is essential to verify all port sizes and the maximum pressure limit of 13 BAR during installation to ensure optimal pneumatic system performance and safety.
Technical Specifications
| Port 1 | M22x1,5 VOSS |
|---|---|
| Port 21 | M22x1,5 VOSS |
| Port 22 | M16x1,5 VOSS |
| Port 41 | M16x1,5 VOSS |
| Port 42 | M16x1,5 VOSS |
| Pressure | MAX 13 BAR |
Other OEMs
DAF
- 1518270
RENAULT TRUCKS
- 5010260705
VOLVO
- 25328737
WABCO
- 973 011 206 0
- 973.011.206.0
- 9730112060
Related Products
Repair Kits
Vehicles Used
| Brand | Model | Engine |
|---|---|---|
| DAF | ||
| PACCAR | ||
| RENAULT TRUCKS | ||
| VOLVO | ||
| WABCO |
