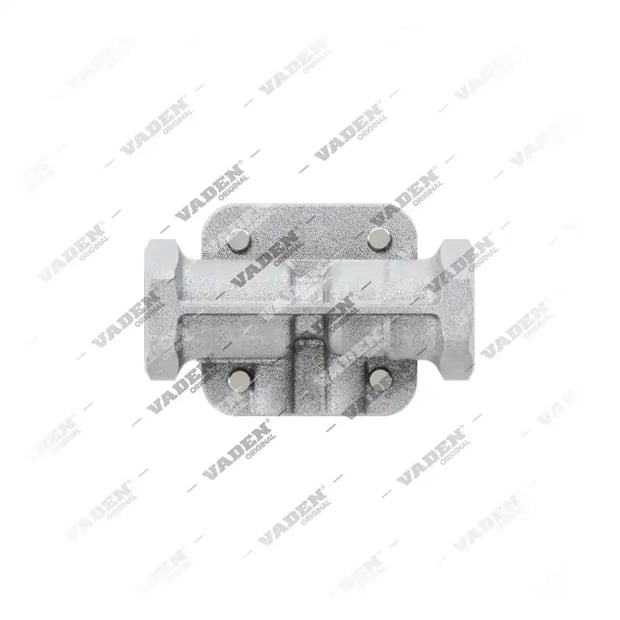

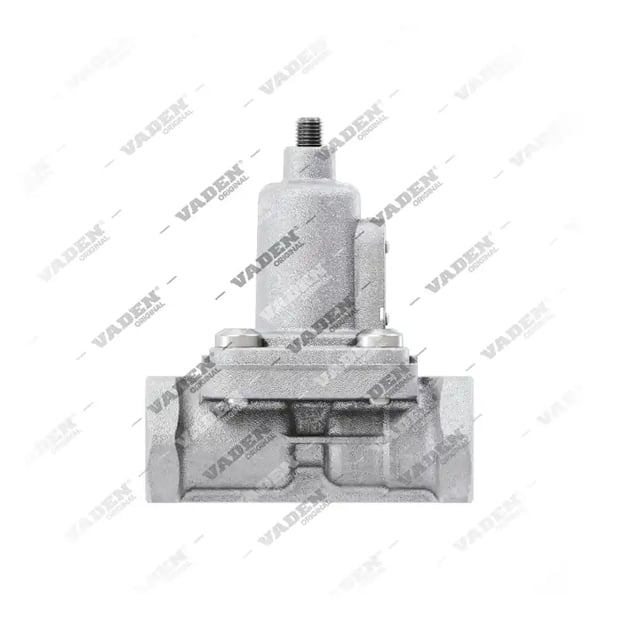

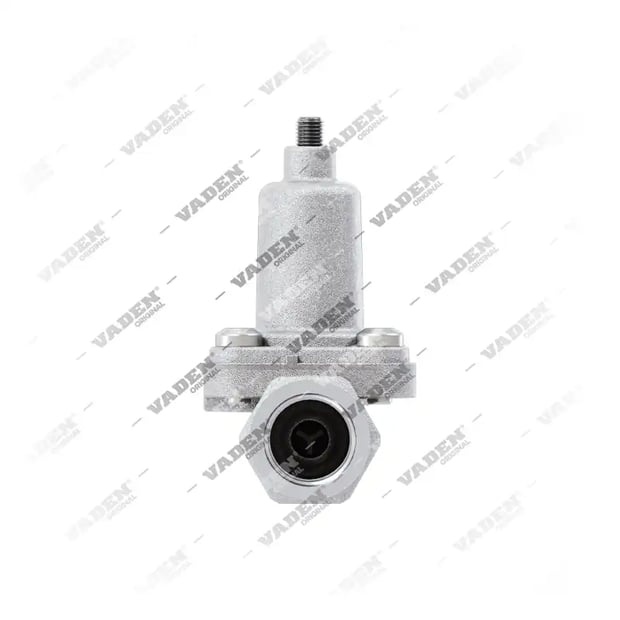

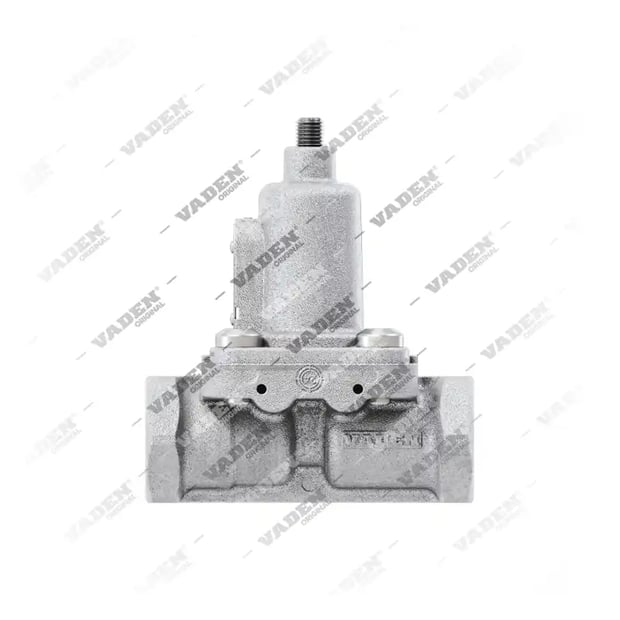

301.07.0150 Volvo Compatible Pressure Limiting Valve

What does a pressure limiting valve do?

This pressure limiting valve plays a critical role in maintaining the integrity of pneumatic brake systems by regulating air pressure levels. It utilizes a high-strength component design to manage airflow effectively, ensuring that the air brake system operates within safe and efficient parameters during heavy-duty operation.

Compatible Volvo models and engines

This part is specifically engineered for various Volvo models, including the F10, F12, FL10, FL12, N10, N12, NL10, NL12, B10B, B10M, and B12 series. It is also compatible with several other heavy commercial vehicle brands such as Scania, MAN, Mercedes-Benz, Iveco, and Renault Trucks. Check the compatibility list.

Installation and maintenance

The valve features M22x1.5 ports and is designed to function within a pressure range of 4.5-0.3 Bar. For optimal performance and safety, technicians should inspect the non-return functionality during routine maintenance to prevent pressure drops in the braking circuit.

System performance and selection

Proper installation requires verifying that the port connections are secure and that the valve is correctly integrated into the air brake line to ensure consistent pressure regulation across the entire vehicle system.

OE cross-reference

301.07.0150 (Pressure Limiting Valve) is the equivalent of the Benalu, Fruehauf, Iveco, Kögel, MAN, Mercedes-Benz, Otokar, Renault Trucks, Scania, Volvo and WABCO OE numbers. This part directly replaces Benalu OE number 605314700. It also replaces Fruehauf OE numbers A78860M10A05, CF351272, Iveco OE number 2516826, Kögel OE number 79406, MAN OE number 81521106025, Mercedes-Benz OE number 0014294744, Otokar OE number AIF0781, Renault Trucks OE numbers 24551064, 5021170096, Scania OE number 1912295, Volvo OE numbers 1698274, 400069 and WABCO OE number 4341001220.
