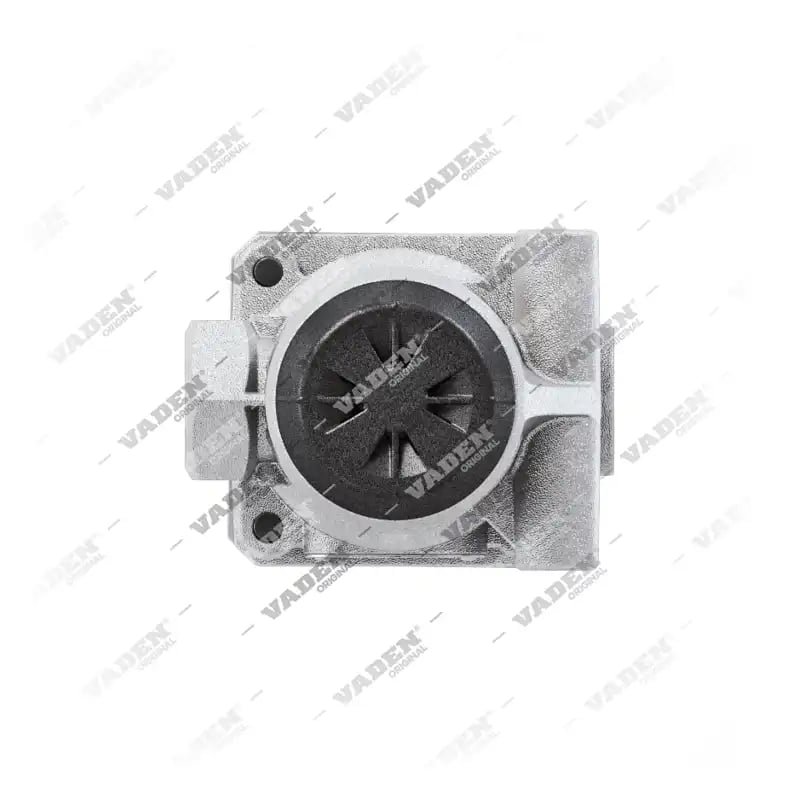

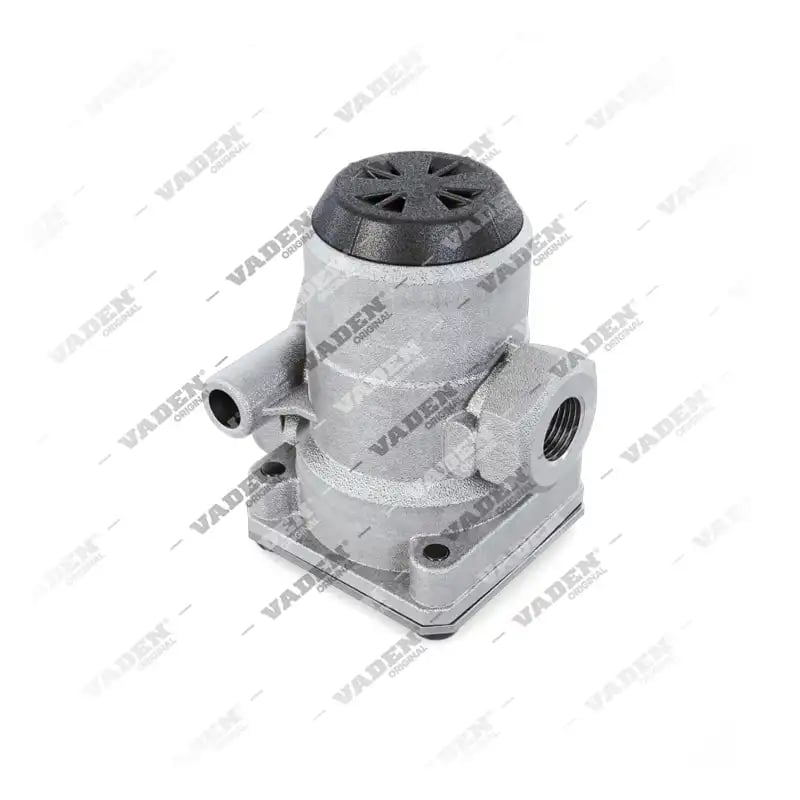

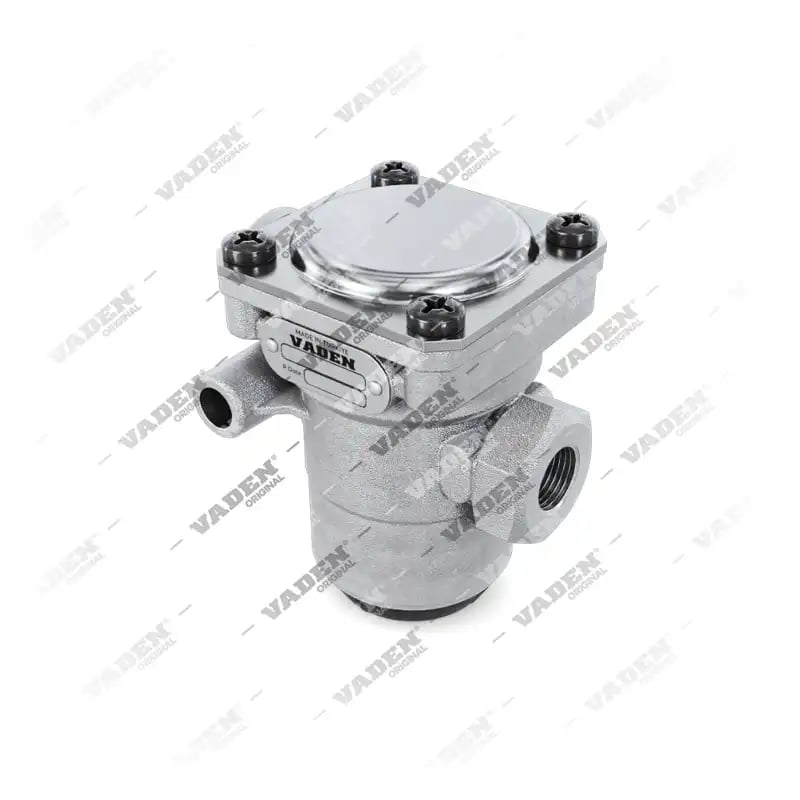

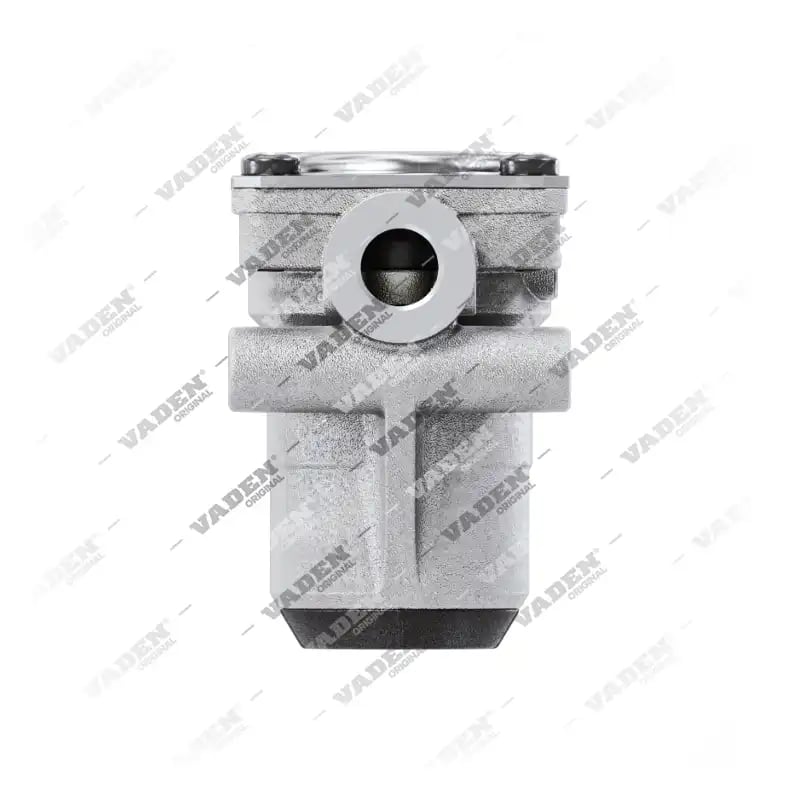

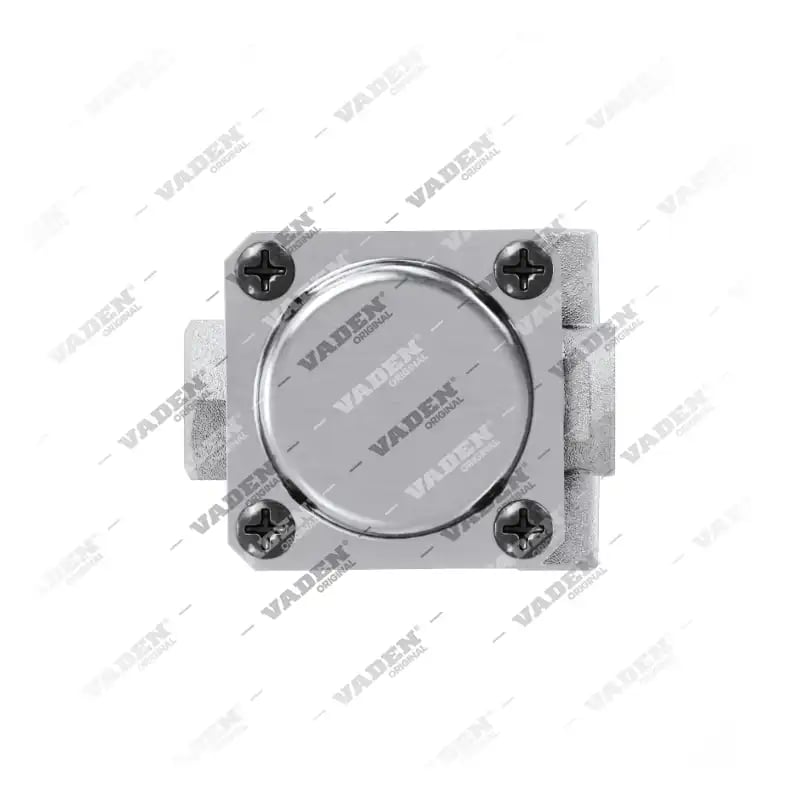

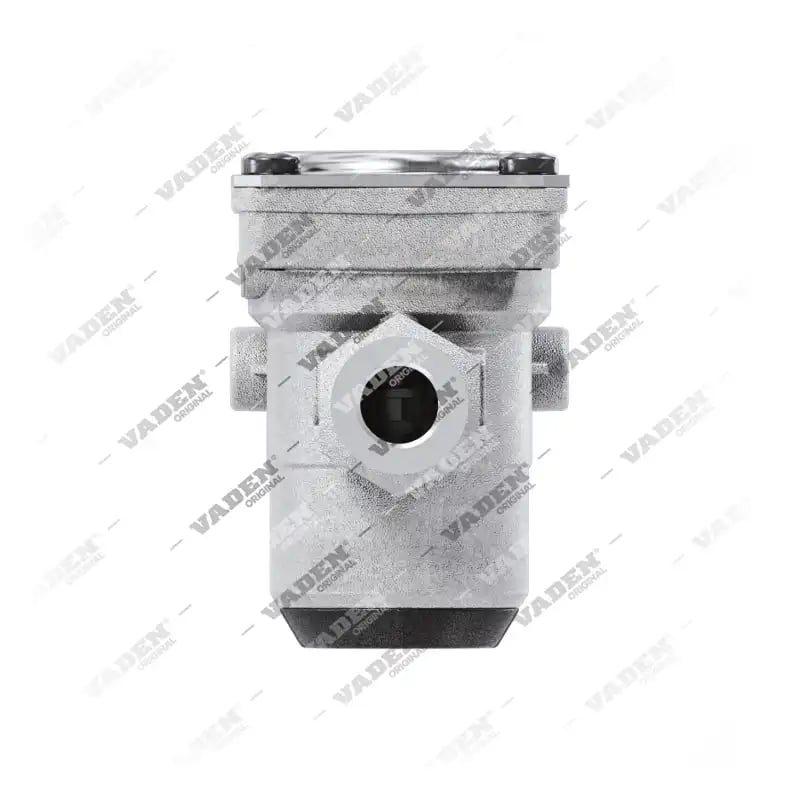

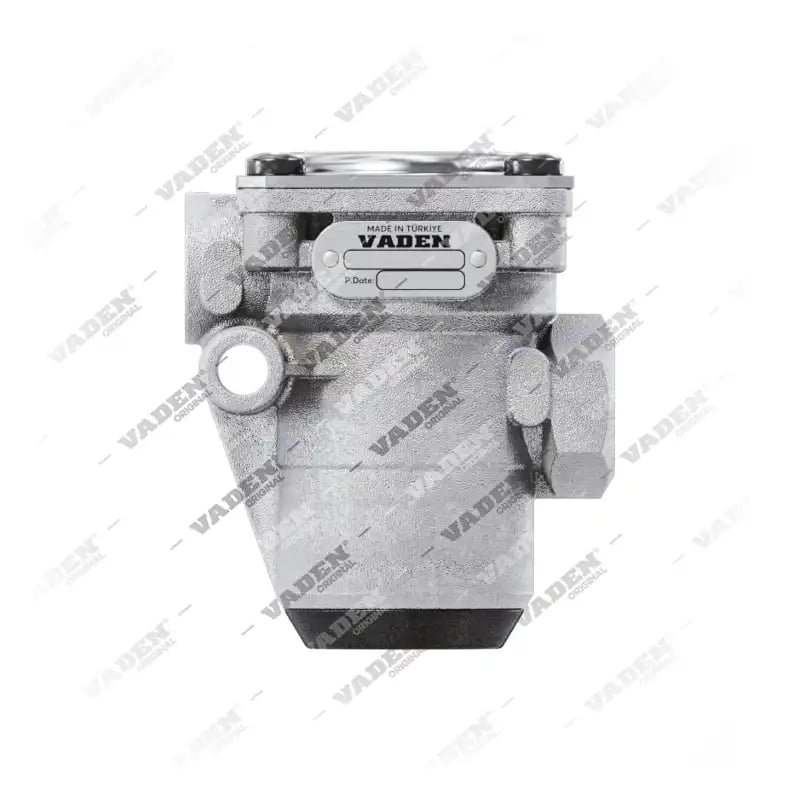

301.07.0039 Pressure Limiting Valve - Vaden Original
301.07.0039
Summary
This high-strength Pressure Limiting Valve features dual M16x1,5 ports and an inlet pressure of 8 BAR. It maintains an adjustment range of 3.5 to 4.5 BAR, ensuring precise pneumatic control for heavy commercial vehicle brake systems. Compatible with DAF, IVECO, MAN, and Scania.
| EAN Code | 8683457011441 |
|---|
Ready to Order
Compatible OEM Codes
- MAN 81.52101-9153 81.52101-6154 81.52101-6153
- MERCEDES BENZ 002 431 12 06 001 431 63 06
- IVECO 5006002630 04457300
- WABCO 475 015 004 0
- VDL 28210202000
- SCANIA 1935023
- NEOPLAN 110243200
- DAF 1517895
Description
The VADEN ORIGINAL 301.07.0039 is a precision-engineered component designed for critical pneumatic regulation within the brake system. This pressure limiting valve ensures consistent operational stability by managing pressure-sensitive transitions between system components. Built with high-strength components, it is designed to withstand rigorous heavy commercial vehicle environments.
The 301.07.0039 is the OE equivalent of the DAF 1517895, IVECO 04457300, and MAN 81521016153 (also 81521016154 or 81521019153) models. It is fully compatible with systems from Mercedes-Benz (including 0014316306 and 0024311206), Scania (reference 1935023), Neoplan, VDL, and WABCO (reference 4750150040). This unit provides an outlet pressure of 3.5 BAR ± 0.2 BAR and a safety pressure threshold of 5.6 BAR.
Technical maintenance for workshop technicians involves verifying the M16x1,5 port integrity and ensuring the adjustment range remains within the specified 3.5 to 4.5 BAR range to prevent pneumatic fluctuations. Regular inspection of the connection points is recommended to maintain optimal braking performance in heavy duty applications.
For professional installation, ensure all seals are compatible with high-pressure pneumatic lines to prevent leaks during operation.
The 301.07.0039 is the OE equivalent of the DAF 1517895, IVECO 04457300, and MAN 81521016153 (also 81521016154 or 81521019153) models. It is fully compatible with systems from Mercedes-Benz (including 0014316306 and 0024311206), Scania (reference 1935023), Neoplan, VDL, and WABCO (reference 4750150040). This unit provides an outlet pressure of 3.5 BAR ± 0.2 BAR and a safety pressure threshold of 5.6 BAR.
Technical maintenance for workshop technicians involves verifying the M16x1,5 port integrity and ensuring the adjustment range remains within the specified 3.5 to 4.5 BAR range to prevent pneumatic fluctuations. Regular inspection of the connection points is recommended to maintain optimal braking performance in heavy duty applications.
For professional installation, ensure all seals are compatible with high-pressure pneumatic lines to prevent leaks during operation.
Technical Specifications
| Port 1 | M16x1,5 |
|---|---|
| Port 2 | M16x1,5 |
| Inlet Pressure | 8 BAR |
| Adjustment Range | 3,5 …..4,5 BAR |
| Outlet Pressure | 3,5 BAR + 0,2 BAR |
| Safety Pressure | 5,6 BAR |
Other OEMs
DAF
- 1517895
IVECO
- 5006002630
- 04457300
MAN
- 81521019153
- 81521016154
- 81521016153
- 81.52101-9153
- 81.52101-6154
- 81.52101-6153
MERCEDES BENZ
- A0024311206
- A0014316306
- A001 431 63 06
- 002 431 12 06
- 001 431 63 06
NEOPLAN
- 110243200
SCANIA
- 1935023
VDL
- 28210202000
WABCO
- 4750150040
- 475 015 004 0
Vehicles Used
| Brand | Model | Model Type | Engine |
|---|---|---|---|
| DAF | |||
| IVECO | |||
| MAN | |||
| MERCEDES BENZ | |||
| NEOPLAN | |||
| SCANIA | |||
| VDL | |||
| WABCO |
FAQ
What is the primary function of this pressure limiting valve?
It regulates the air pressure within the brake system to ensure stable pneumatic performance in heavy commercial vehicles.
Which vehicle brands are compatible with this part?
This part is compatible with DAF, IVECO, MAN, Mercedes-Benz, Neoplan, Scania, VDL, and WABCO systems.
What are the technical port specifications?
The valve features two M16x1,5 ports designed for high-durability pneumatic connections.
Can this part be used as an OE replacement?
Yes, it serves as an equivalent for OEM numbers such as DAF 1517895, IVECO 5006002630, and MAN 81521016154.
What is the safety pressure threshold for this component?
The component is engineered with a safety pressure limit of 5.6 BAR to protect the pneumatic circuit.
