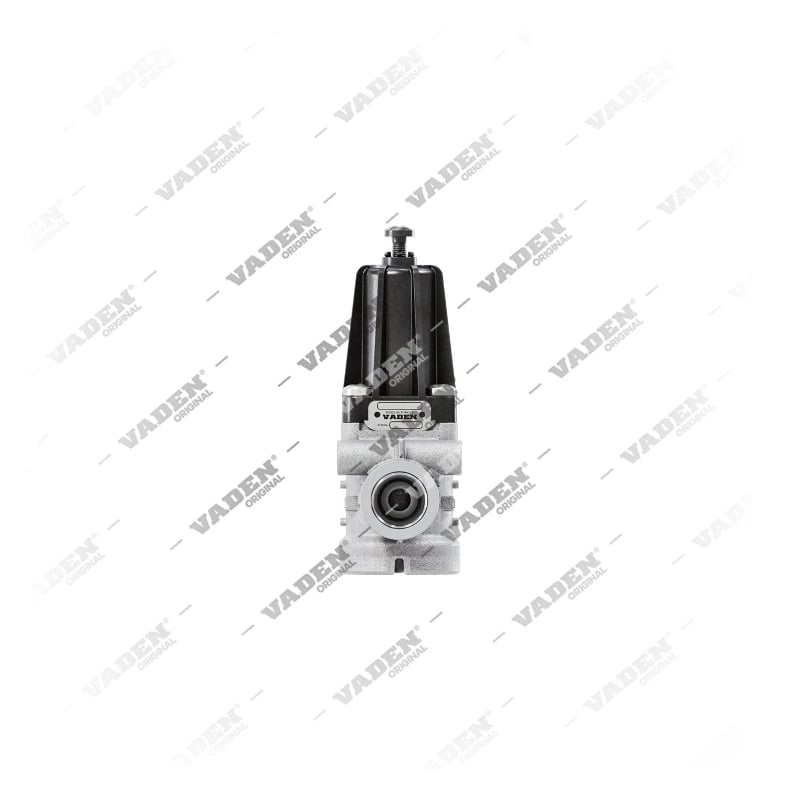

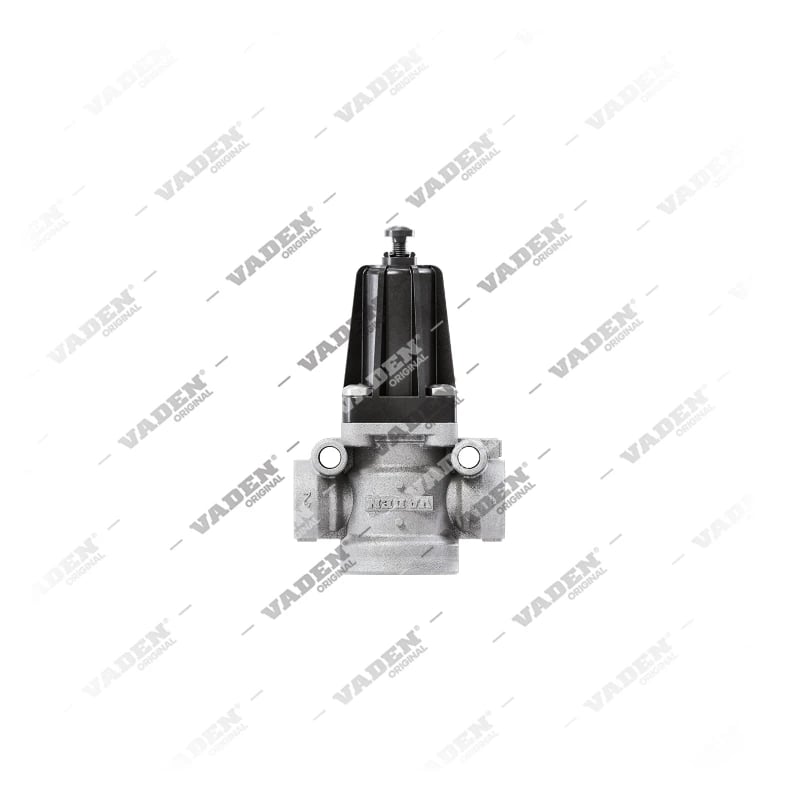

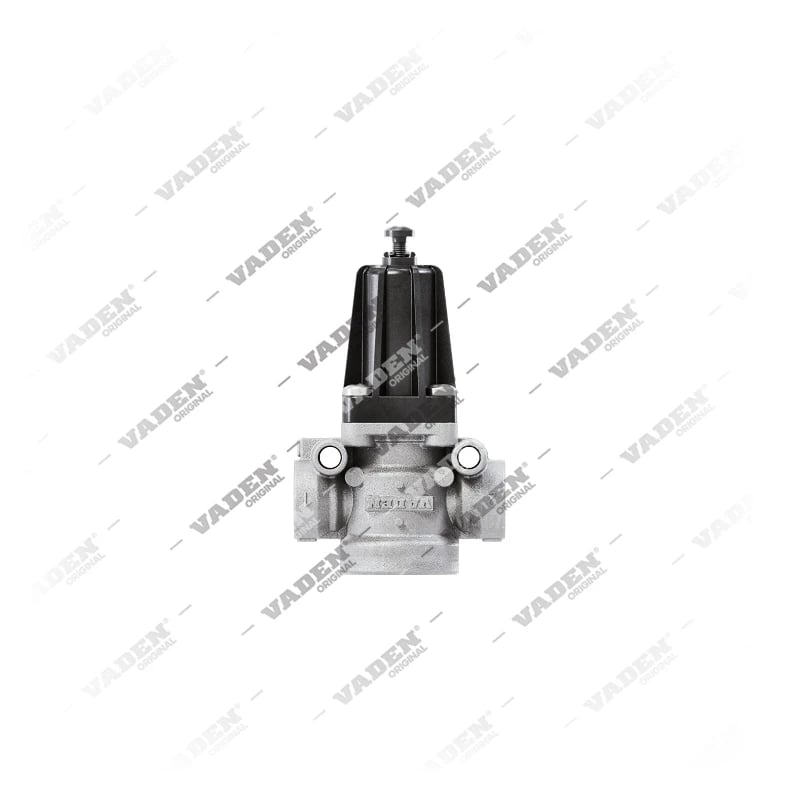

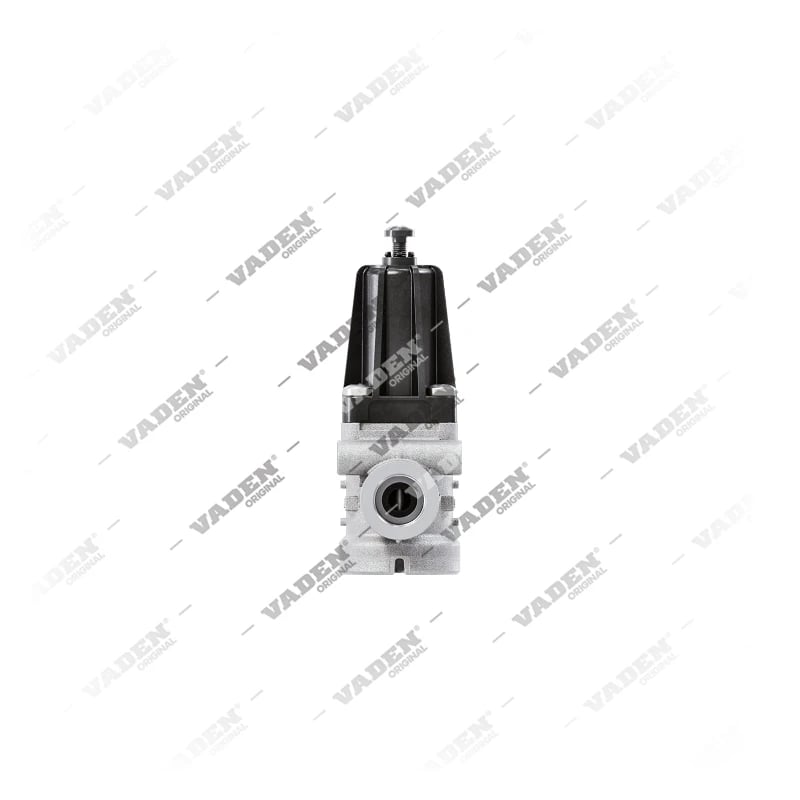

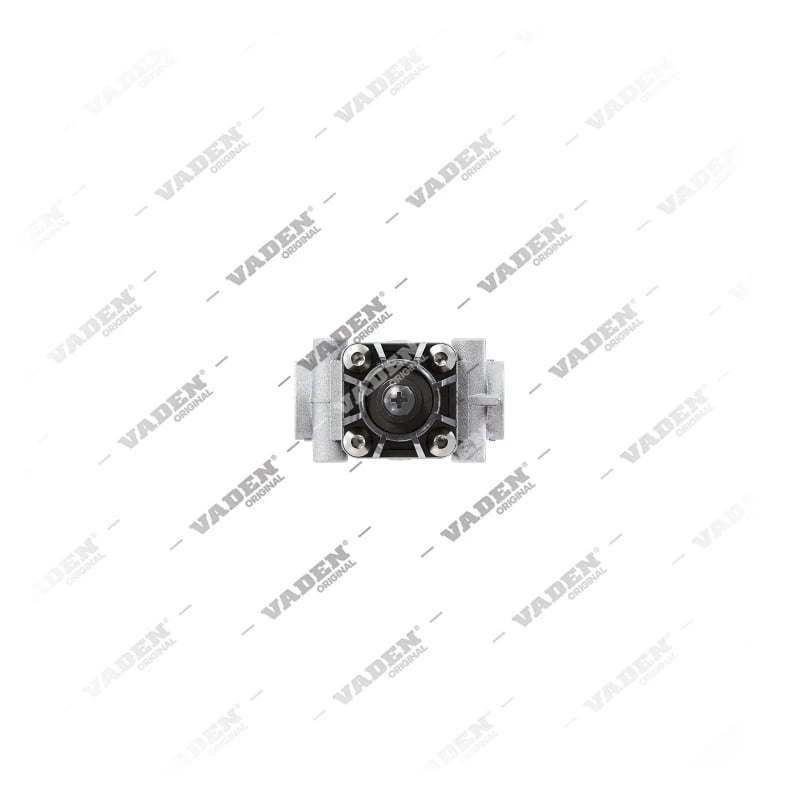

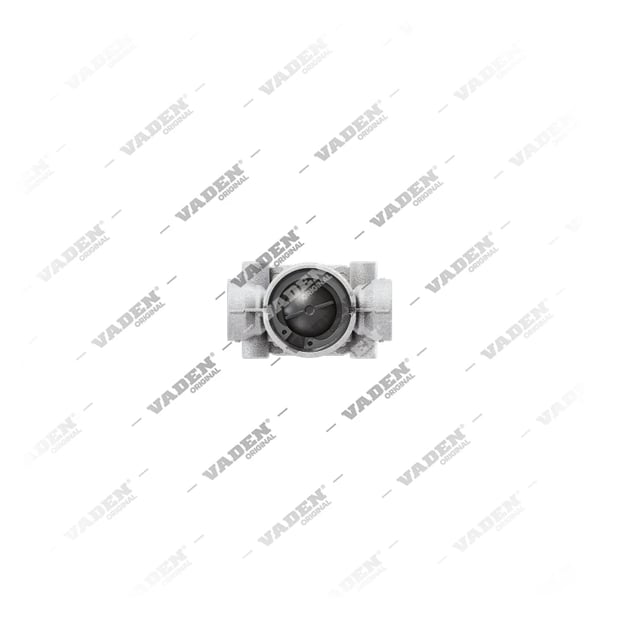

301.07.0036 Pressure Limiting Valve for WABCO systems
301.07.0036
Summary
This pressure limiting valve is engineered for heavy commercial vehicle brake systems. It features M22x1.5 VOSS ports, an adjustment range of 5.8 to 10.8 BAR, and an outlet pressure of 8.5 BAR to ensure precise pneumatic regulation in demanding environments. Equivalent to OE WABCO 4750103260.
| EAN Code | 8683457011410 |
|---|
Ready to Order
Compatible OEM Codes
-
WABCO
- 475 010 326 0
Description
What does a pressure limiting valve do?
This pressure limiting valve serves as a critical component within the pneumatic brake system, regulating air pressure to maintain optimal braking performance. Built with high-strength components, it ensures consistent pressure management to prevent system overpressure and ensure safety during heavy-duty operations.Compatibility and system integration
The component is designed to be compatible with WABCO systems, providing a reliable solution for workshop technicians and fleet managers managing heavy commercial vehicle fleets. It maintains precise control within the pneumatic circuit to ensure the integrity of the braking force.Installation and maintenance guidance
For correct installation, technicians should verify that the M22x1.5 VOSS port connections are secure and that the adjustment range of 5.8 to 10.8 BAR aligns with the specific vehicle requirements. Regular inspection of the outlet pressure at 8.5 BAR is recommended to ensure system stability.System performance and selection
Consult your authorized distributor for more information on fitment and application.OE cross-reference
301.07.0036 (Pressure Limiting Valve) is the equivalent of the WABCO OE number. This part directly replaces WABCO OE number 4750103260.Technical Specifications
| Port 1 | M22x1,5 VOSS |
|---|---|
| Port 2 | M22x1,5 VOSS |
| Inlet Pressure | 12,3 BAR |
| Adjustment Range | 5,8 …..10,8 BAR |
| Outlet Pressure | 8,5 BAR |
Other OEMs
WABCO
- 4750103260
- 475 010 326 0
Compatible Vehicles
| Brand | Model | Model Type | Engine |
|---|---|---|---|
| WABCO |
FAQ
What is the primary function of this pressure limiting valve?
It regulates air pressure within the pneumatic brake system to ensure it stays within safe operating limits, preventing damage from excessive pressure.
What are the technical port specifications?
This valve is equipped with M22x1.5 VOSS ports, designed for secure and leak-free connections in heavy-duty pneumatic systems.
What is the operating pressure range?
The unit features an adjustment range between 5.8 and 10.8 BAR, delivering a standard outlet pressure of 8.5 BAR.
Is this component compatible with WABCO systems?
Yes, this part is specifically designed to be compatible with WABCO systems in heavy commercial vehicles.
What are the OE reference numbers of this part?
301.07.0036 directly replaces WABCO OE number 4750103260.
