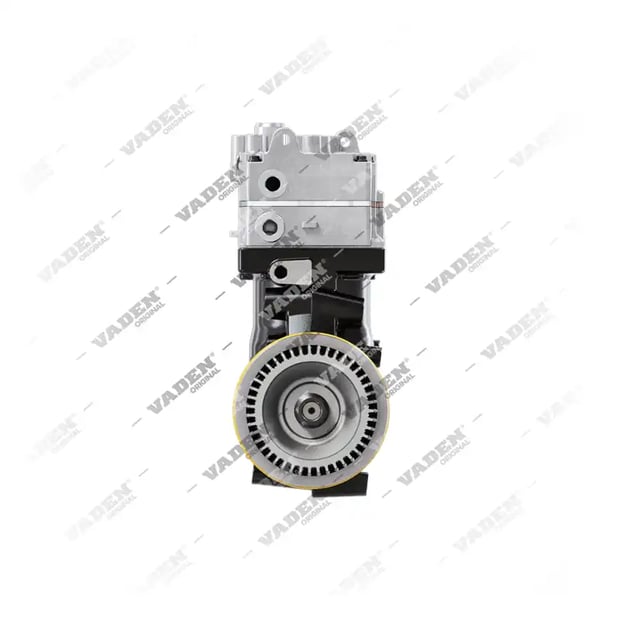

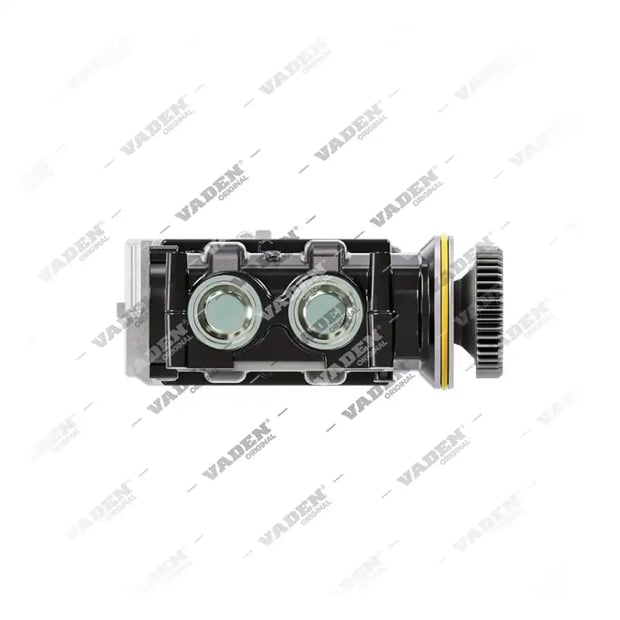

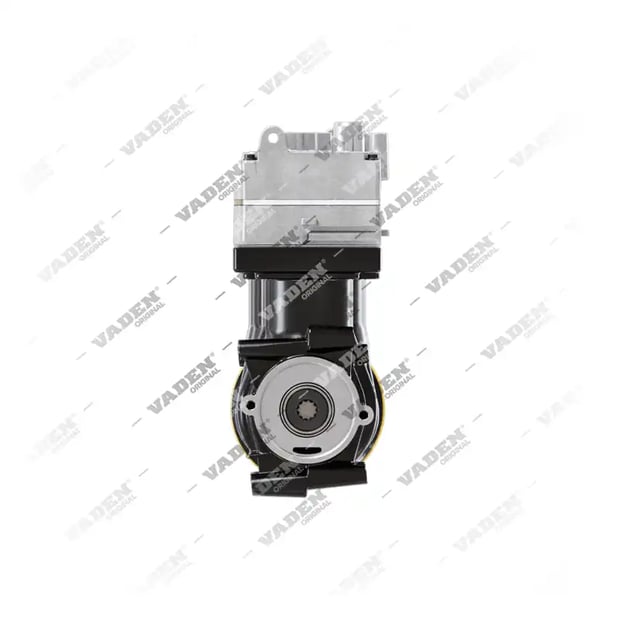

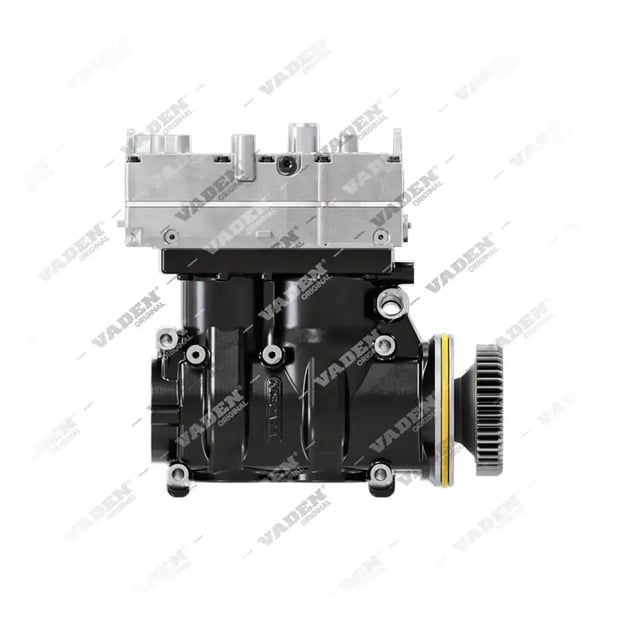

1600 160 001 Compatible Twin Cylinder Air Compressor
1600 160 001
Summary
This EURO6 twin cylinder air compressor features water cooling and an ESS feature, designed for heavy-duty performance. It is compatible with DAF CF, XF, XG, and XG+ models equipped with PACCAR MX-13 engines. Technical specs include a Ø100 / Ø75 cylinder bore and a 58 / 28mm stroke. Equivalent to OE DAF 2133506 and WABCO 9127180000.
| EAN Code | 8699031083216 |
|---|
Ready to Order
Compatible OEM Codes
-
WABCO
- 912 718 000 0
-
DAF
- 2133506
Description
What does a twin cylinder compressor do?
This engine-driven twin cylinder compressor is a critical component within the air brake system of heavy commercial vehicles, designed to meet the high air demand of modern EURO6 standards. By utilizing two piston-cylinder assemblies, this unit ensures rapid pressure buildup and reliable air delivery for braking and pneumatic systems. The construction focuses on high-strength components to withstand rigorous heavy-duty operating conditions.Vehicle compatibility and engine fitment
This specific model is engineered for compatibility with PACCAR MX-13 engines, specifically fitted to DAF CF, XF, XG, and XG+ trucks. It is designed to function seamlessly within the air brake system of these high-performance heavy commercial vehicles. The unit features a water-cooled design to manage thermal loads during continuous operation.Installation and maintenance guidance
For technical installation, note the water inlet and outlet ports are M16x1,5, while the air unloader port is M14x1,5. The air inlet port measures Ø25 and the outlet port is Ø20. Ensuring correct torque on these connections and maintaining the cooling circuit is essential for optimal service life. Consult your authorized distributor.Troubleshooting and maintenance
Regular inspection of the water cooling lines and air ports can prevent pressure drops in the braking system. Maintaining the integrity of the ESS feature ensures consistent performance across varying load conditions in heavy commercial vehicle applications.OE cross-reference
1600 160 001 (Twin Cylinder Compressor) is the equivalent of the DAF and WABCO OE numbers. This part directly replaces DAF OE number 2133506. It also replaces WABCO OE number 9127180000.Technical Specifications
| Cylinder Bore | Ø100 / Ø75 |
|---|---|
| Stroke | 58 / 28mm |
| Swept Volume | 440 / 124 cm³ |
| Air Inlet Port | Ø25 |
| Air Outlet Port | Ø20 |
| Number of Cylinders | 2 |
| Through Drive | OK |
| Air Unloader Port | M14x1,5 |
| Water (W) or Air (A) Cooled | W |
| Water Inlet Port | M16x1,5 |
| Water Outlet Port | M16x1,5 |
| With ESS Feature | OK |
| Water Cooled Valve Plate | OK |
| Exhaust Emission Standard | EURO 6 |
Other OEMs
DAF
- 2133506
WABCO
- 9127180000
- 912.718.000.0
- 912.718.00.00
- 912 718 00 00
- 912 718 000 0
Related Products
Repair Kits
Compatible Vehicles
| Brand | Model | Model Type | Engine |
|---|---|---|---|
| DAF | |||
| DAF | CF | PACCAR MX-13 | |
| DAF | XF | PACCAR MX-13 | |
| DAF | XG | PACCAR MX-13 | |
| DAF | XG+ | PACCAR MX-13 | |
| PACCAR | MX-13 | ||
| WABCO |
FAQ
What is the primary function of this twin cylinder compressor?
This unit generates compressed air required for the operation of the air brake system in heavy commercial vehicles, providing higher output than single-cylinder models.
Which vehicle models are compatible with this unit?
This compressor is compatible with DAF CF, XF, XG, and XG+ trucks that are equipped with PACCAR MX-13 engines.
How does the cooling system work on this model?
This is a water-cooled (W) unit featuring M16x1,5 water inlet and outlet ports to manage operational temperatures effectively.
What are the key technical dimensions for installation?
The unit features a Ø100 / Ø75 cylinder bore with a 58 / 28mm stroke, an Ø25 air inlet port, and an Ø20 air outlet port.
What are the OE reference numbers of this part?
1600 160 001 directly replaces DAF OE number 2133506. It also replaces WABCO OE number 9127180000.
