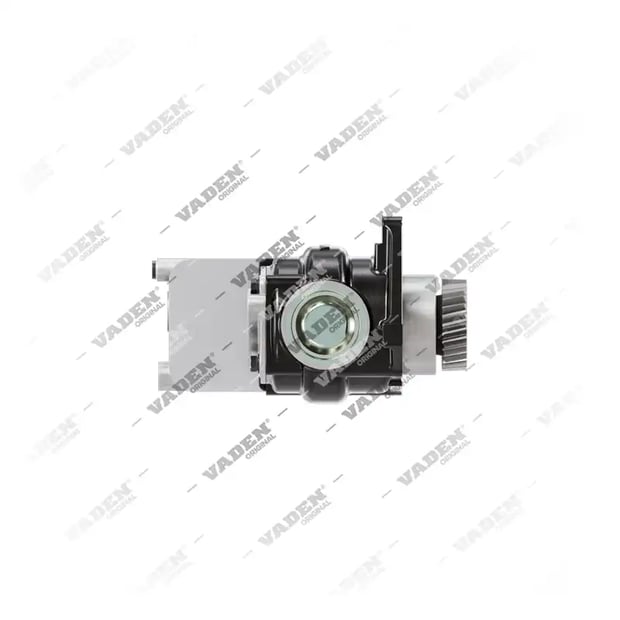

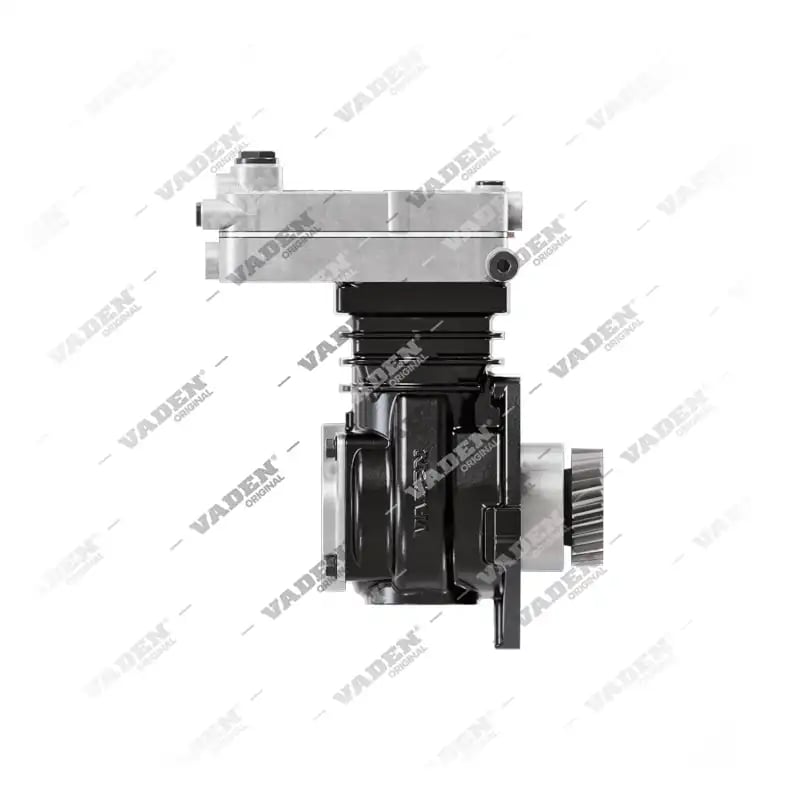

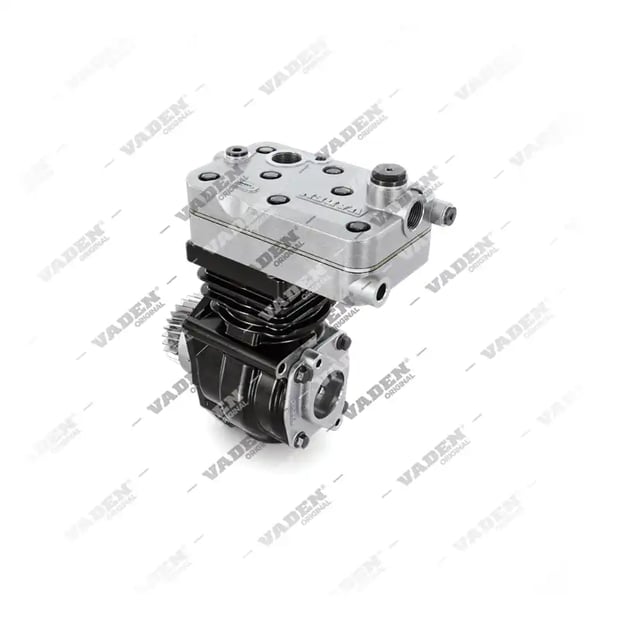

1100 035 001 Mercedes-Benz Compatible Single Cylinder Compressor
1100 035 001
Summary

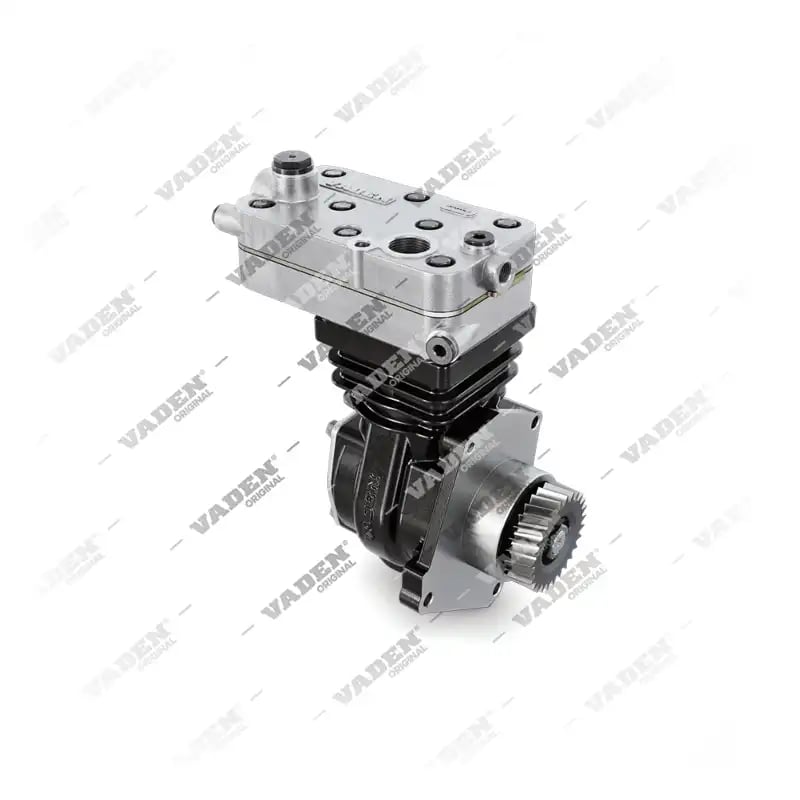

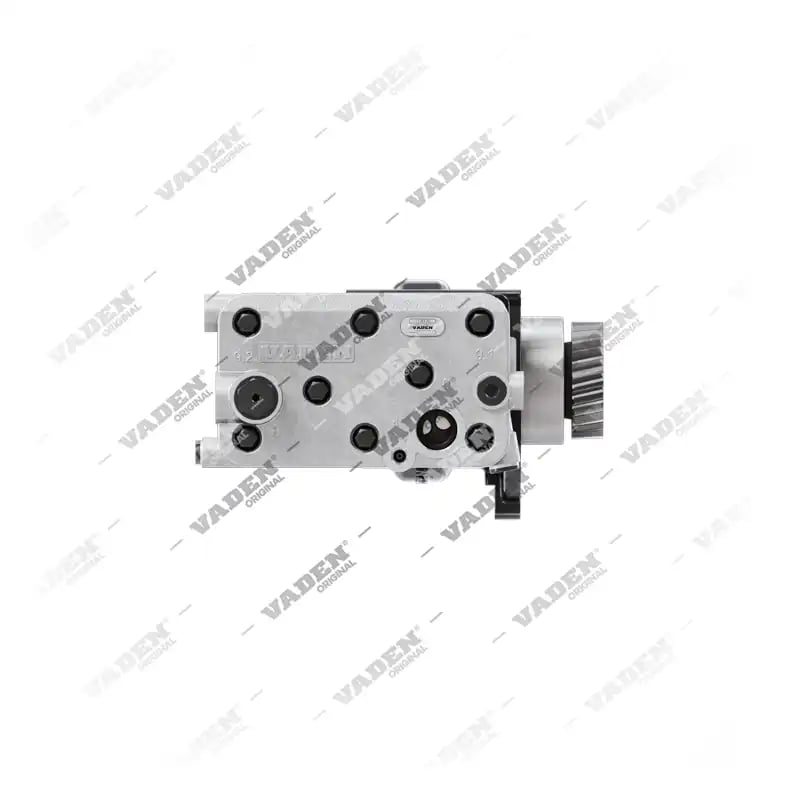

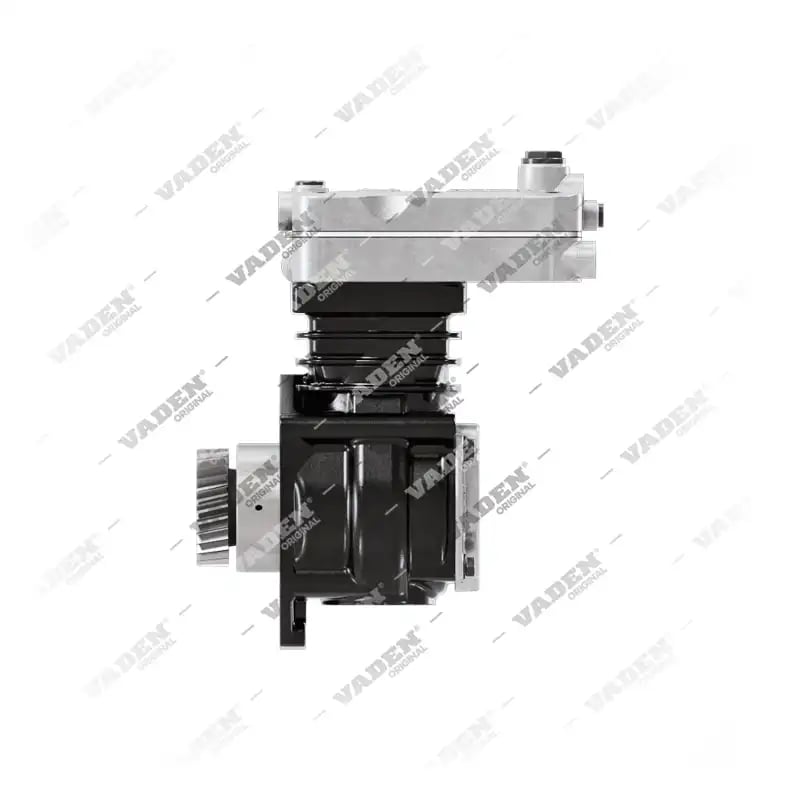

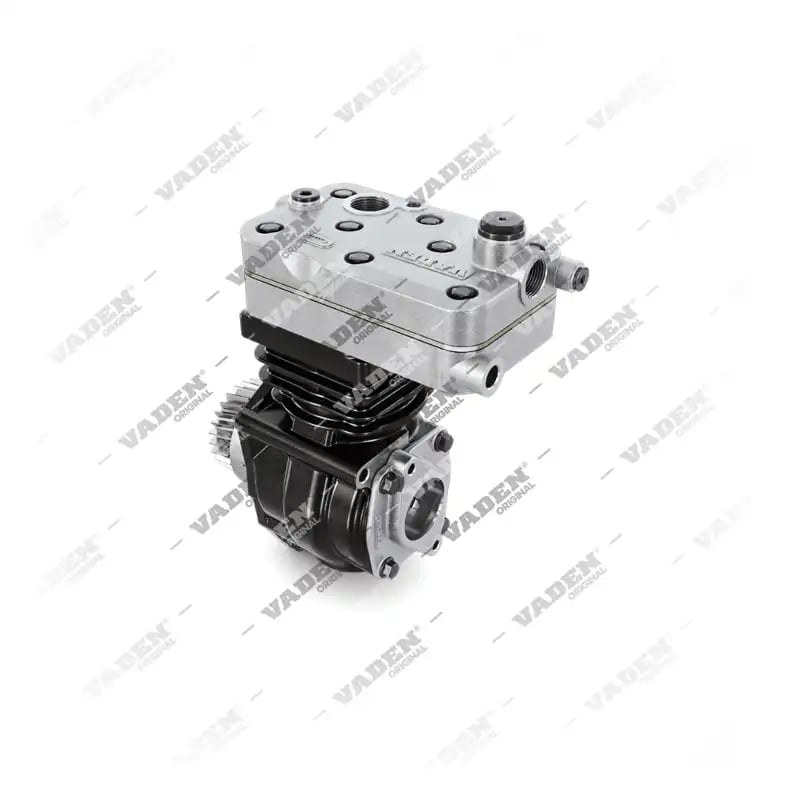

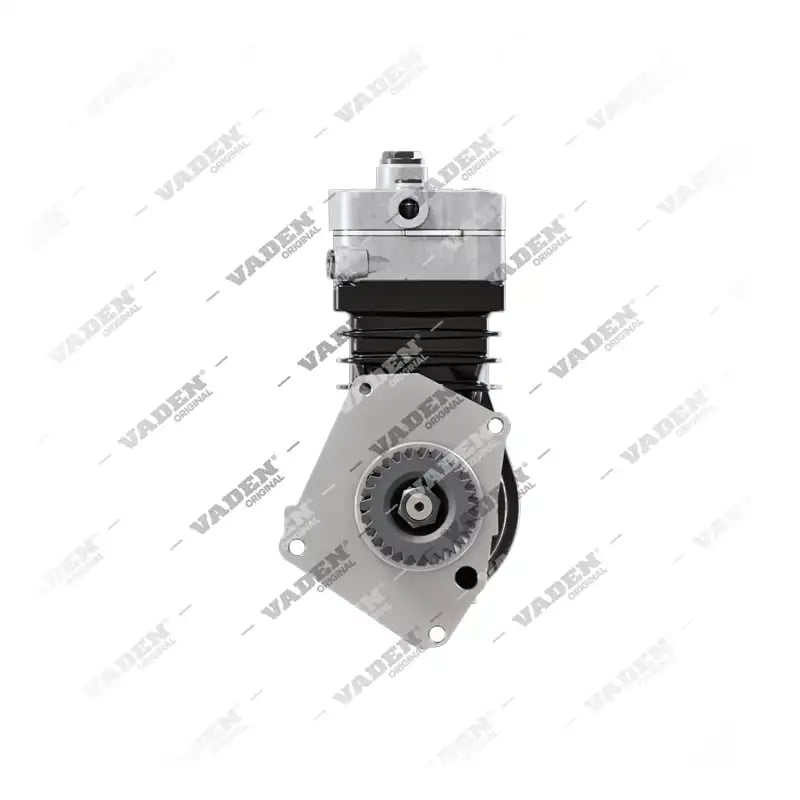

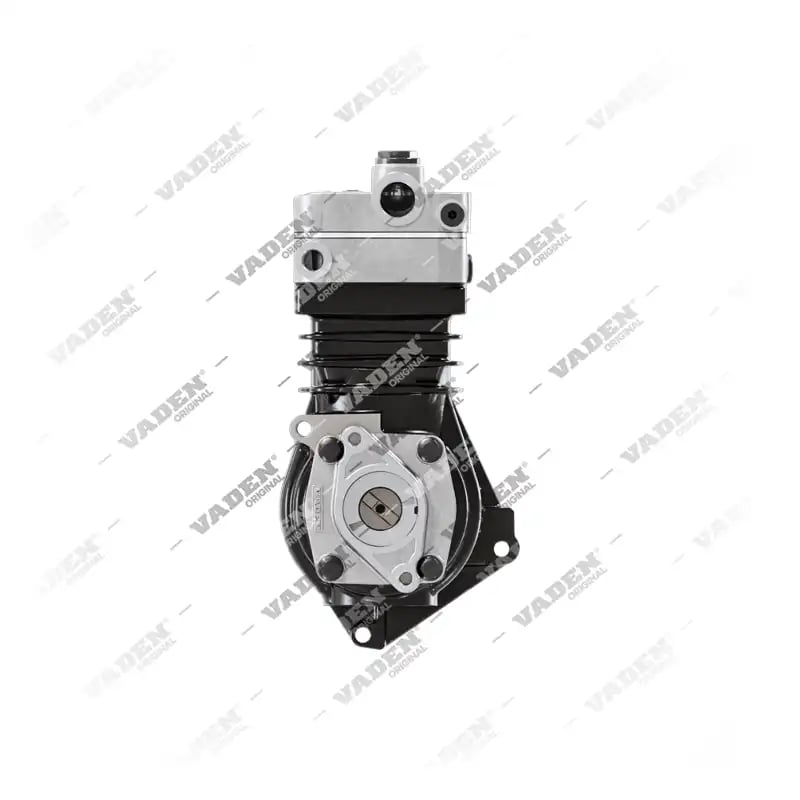

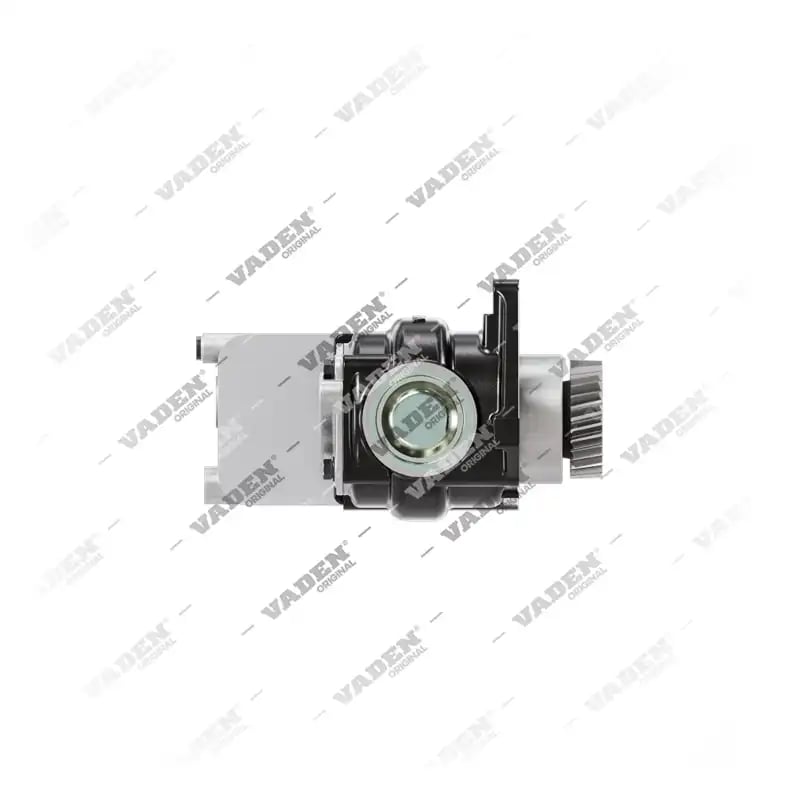

This single cylinder water-cooled air compressor is designed for heavy commercial vehicles. It features a Ø85.00 mm cylinder diameter, 62 mm stroke, and M26x1,5 air ports to ensure reliable air production for braking systems. Equivalent to OE Mercedes-Benz 4571304515 and WABCO 4123520150.
| EAN Code | 8699031047669 |
|---|
Ready to Order
Compatible OEM Codes
-
MERCEDES BENZ
- 476 130 01 15
- 457 130 68 15
- 457 130 67 15
- 457 130 45 15
-
WABCO
- 412 352 031 0
- 412 352 027 0
- 412 352 015 0
Description
What does an air compressor do?
This single cylinder air brake compressor functions as a vital component within the pneumatic braking system of heavy commercial vehicles. By converting mechanical energy into compressed air, it provides the necessary pressure for the air processing units and tanks. This water-cooled unit is engineered with high-strength components to withstand demanding operating conditions and ensure consistent performance.Vehicle compatibility and technical specs
This specific model is compatible with Mercedes-Benz vehicles and meets requirements for WABCO systems. It features a single-piston design with a swept volume of 352cm³, ensuring efficient air delivery for heavy-duty applications. The unit includes an integrated unloader port (M12x1,5) and is equipped with an ESS feature for optimized system management.Installation and maintenance
For proper installation, technicians should verify the water inlet and outlet connections (M16x1,5) to prevent overheating. Regular inspection of the water-cooled valve plate and port seals is recommended to maintain peak pneumatic efficiency. Ensuring correct alignment during mounting helps prevent premature wear on the internal piston assembly.System reliability
Consult your authorized distributor to check the compatibility list.OE cross-reference
1100 035 001 (Single Cylinder Compressor) is the equivalent of the Mercedes-Benz and WABCO OE numbers. This part directly replaces Mercedes-Benz OE numbers 4571304515, 4571306715, 4571306815, 4761300115. It also replaces WABCO OE numbers 4123520150, 4123520270, 4123520310.Technical Specifications
| Cylinder Diameter (mm) | Ø85.00 |
|---|---|
| Stroke | 62 mm |
| Swept Volume | 352cm³ |
| Air Inlet Port | M26x1,5 |
| Air Outlet Port | M26x1,5 |
| Number of Cylinders | 1 |
| Through Drive | OK |
| Air Unloader Port | M12x1,5 |
| Water (W) or Air (A) Cooled | W |
| Water Inlet Port | M16x1,5 |
| Water Outlet Port | M16x1,5 |
| With ESS Feature | OK |
| Water Cooled Valve Plate | OK |
Other OEMs
MERCEDES BENZ
- A4761300115
- A4571306815
- A4571306715
- A4571304515
- 4761300115
- 476.130.0115
- 476.130.01.15
- 476 130 0115
- 4571306815
- 4571306715
- 4571304515
- 457.130.6815
- 457.130.68.15
- 457.130.6715
- 457.130.67.15
- 457.130.4515
- 457.130.45.15
- 457 130 6815
- 457 130 6715
- 457 130 4515
- 476 130 01 15
- 457 130 68 15
- 457 130 67 15
- 457 130 45 15
WABCO
- 4123520310
- 4123520270
- 4123520150
- 412.352.031.0
- 412.352.027.0
- 412.352.015.0
- 412 352 031 0
- 412 352 027 0
- 412 352 015 0
Related Products
Repair Kits
Compatible Vehicles
| Brand | Model | Model Type | Engine |
|---|---|---|---|
| EVOBUS | |||
| MERCEDES BENZ | |||
| SETRA | |||
| WABCO |
FAQ
How does this single cylinder compressor function?
The compressor uses a piston mechanism to compress intake air, which is then sent to the air processing unit to supply the vehicle's braking system.
What are the key technical specifications for this unit?
This unit features a Ø85.00 mm cylinder diameter, a 62 mm stroke, and M26x1,5 ports for both air inlet and outlet.
Is this compressor suitable for heavy commercial vehicles?
Yes, it is specifically designed for heavy commercial vehicle applications, utilizing a water-cooled design to manage high temperatures during operation.
Which brands is this part compatible with?
This component is designed to be compatible with Mercedes-Benz vehicles and WABCO systems.
What are the OE reference numbers of this part?
1100 035 001 directly replaces Mercedes-Benz OE numbers 4571304515, 4571306715, 4571306815, 4761300115. It also replaces WABCO OE numbers 4123520150, 4123520270, 4123520310.
