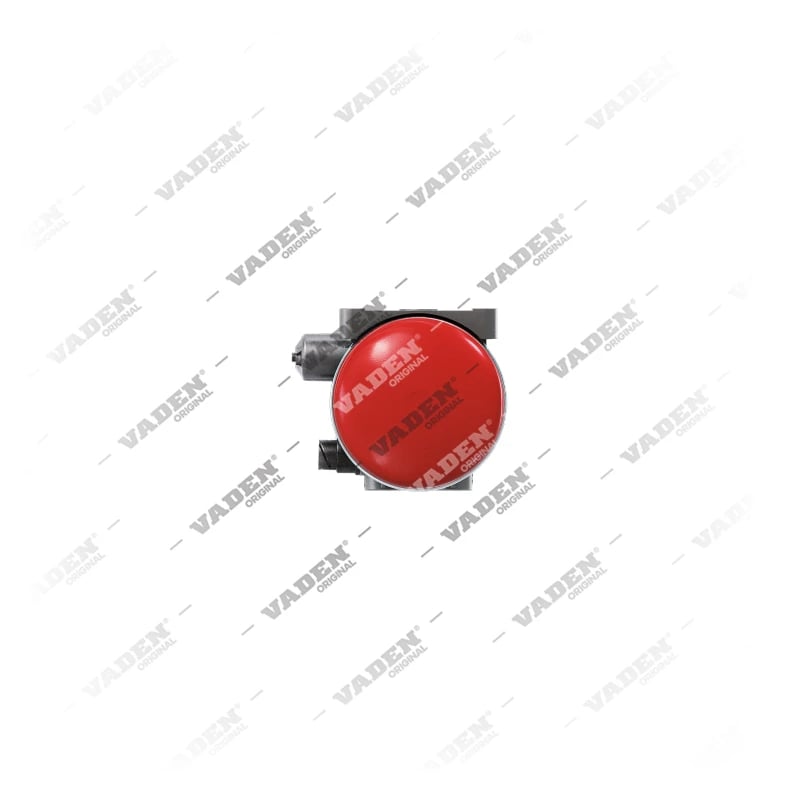

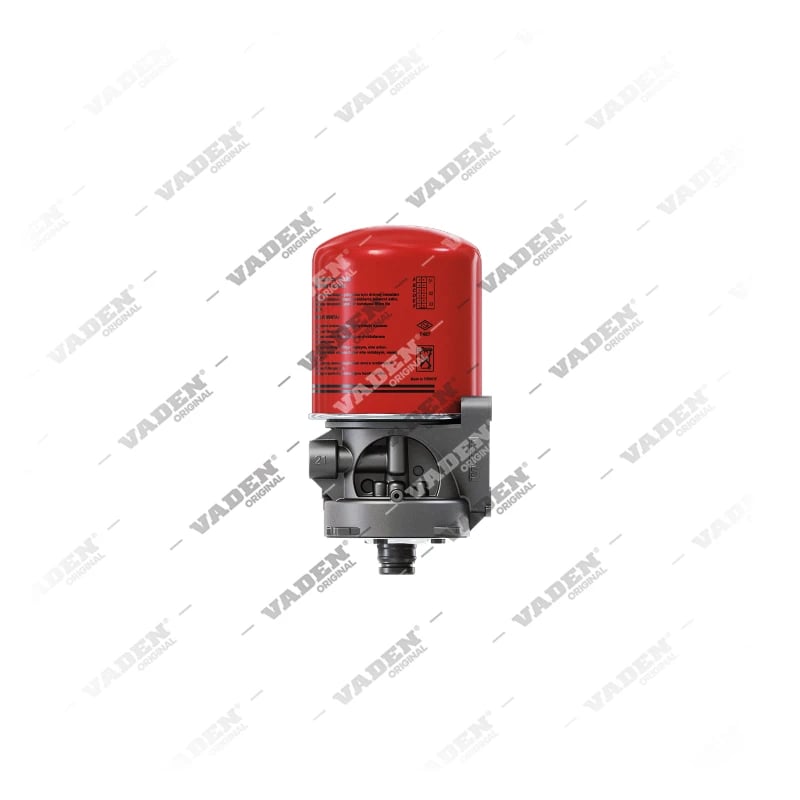

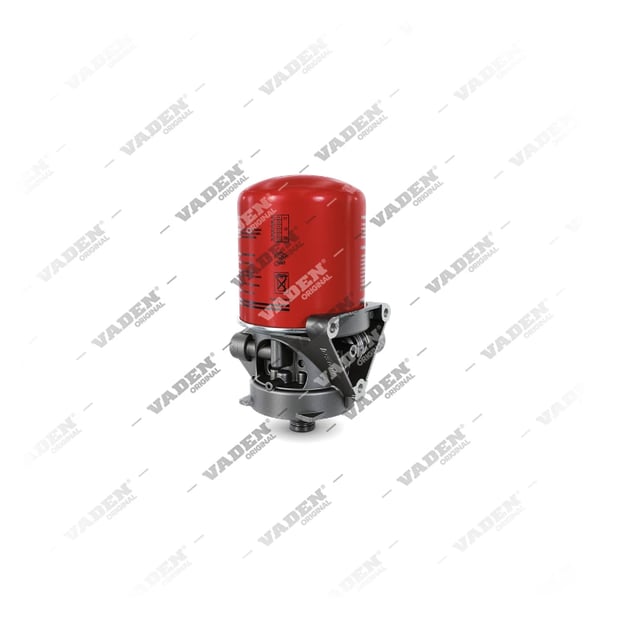

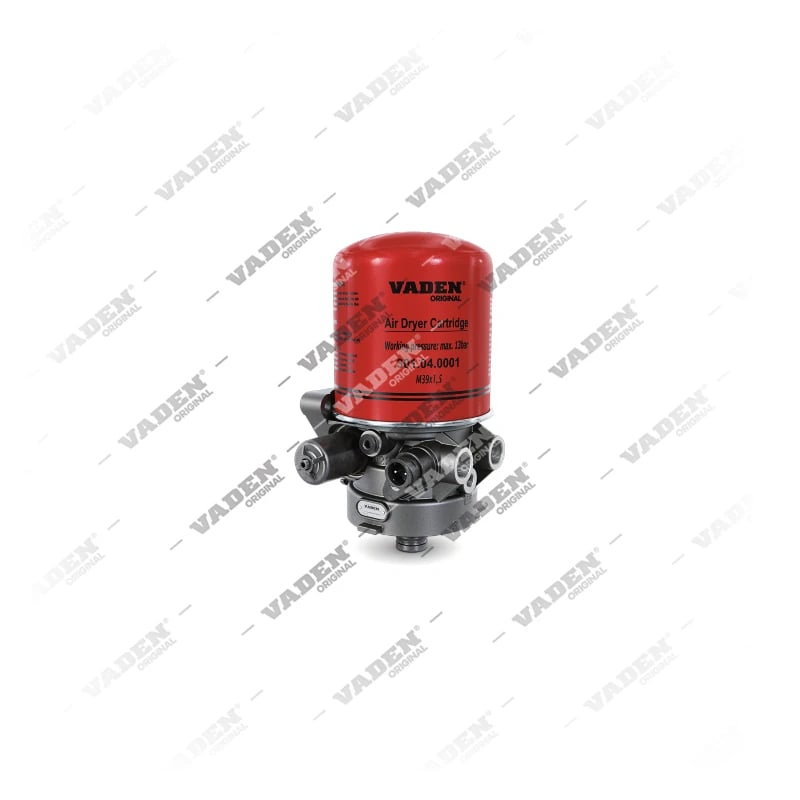

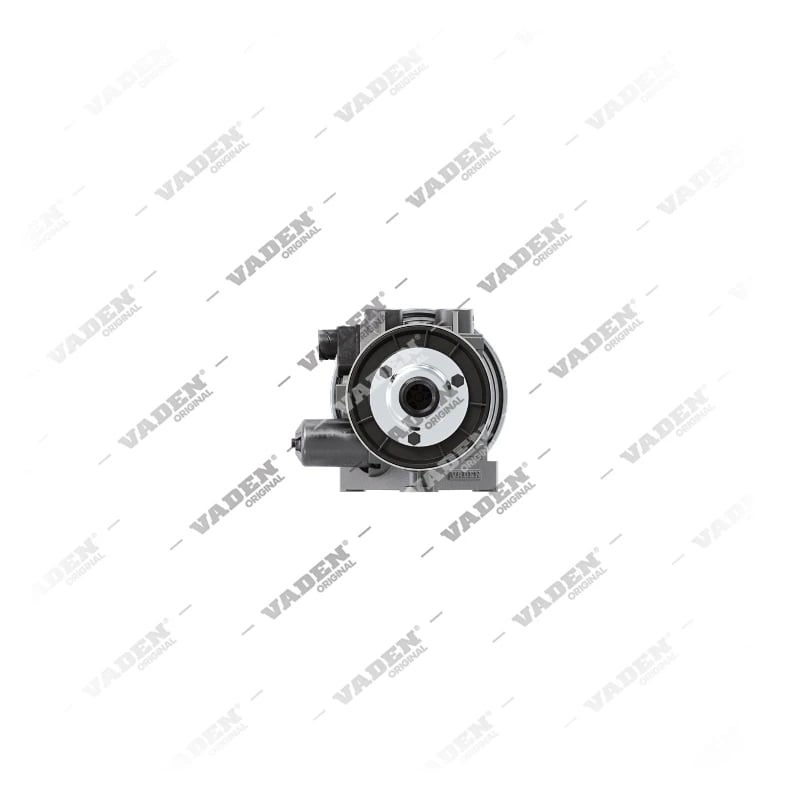

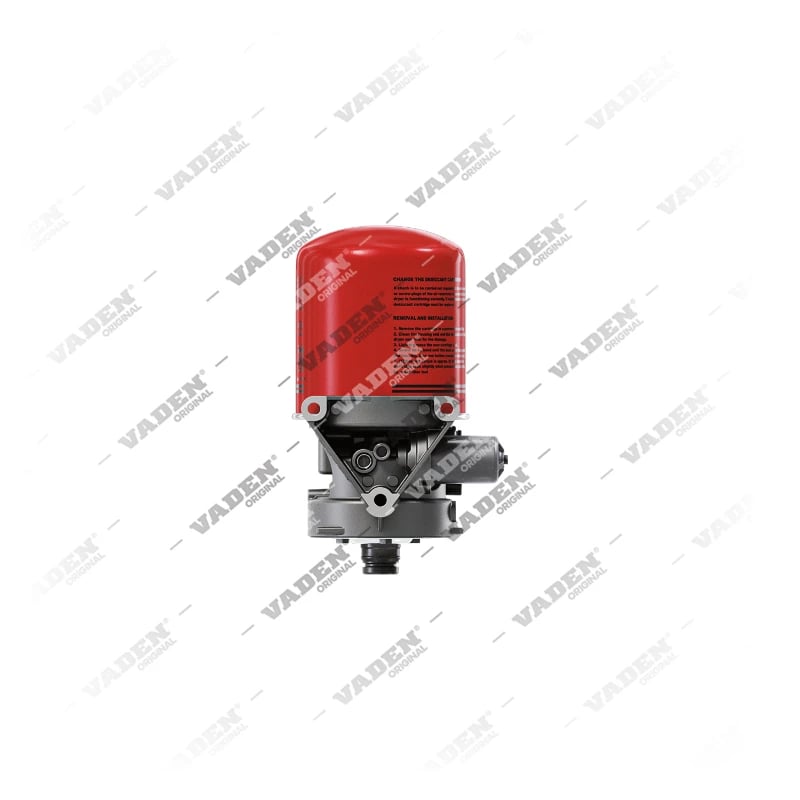

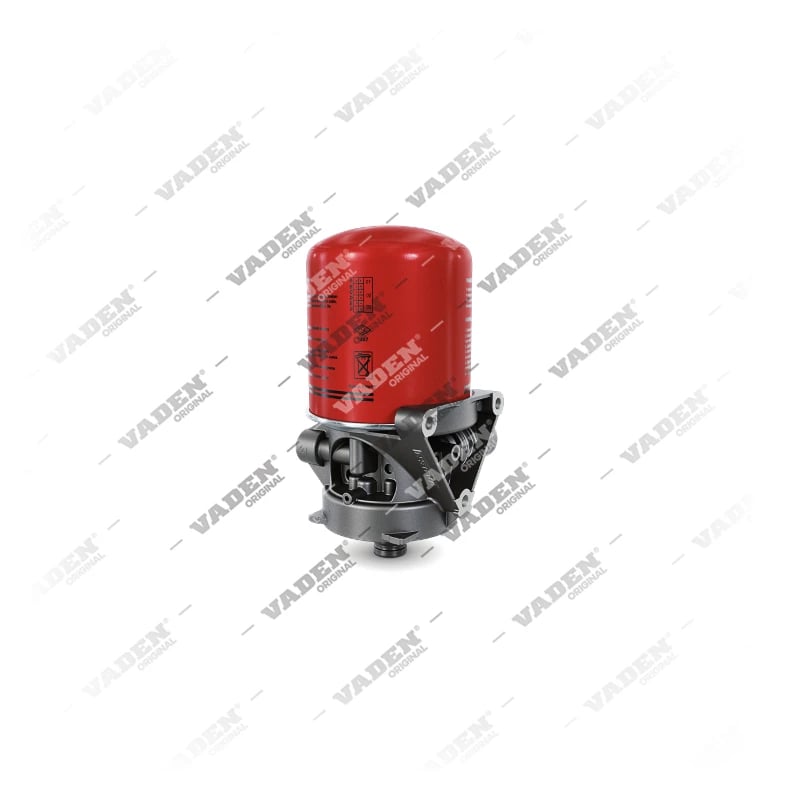

301.03.0014 DAF Complete, Air Dryer Valve DAF
301.03.0014
Summary
The Vaden Original 301.03.0014 is a high-performance complete air dryer valve designed for heavy commercial vehicle brake systems. It features a 24 V heater, M22x1,5 (Ports 1 & 21) and M16x1,5 (Ports 4/23 & 22) configurations, operating at a pressure of 9,8 BAR. This component ensures optimal air quality and system-wide reliability for DAF and KNORR-BREMSE hardware.
| EAN Code | 8699031079776 |
|---|
Ready to Order
Compatible OEM Codes
- DAF 1351443R 1351443A 1351443 1315688R 1315688A 1315688
- KNORR-BREMSE LA 8284 II37663N52 II37663N50 II37663 I98284
Description
The Vaden Original 301.03.0014 is a critical component designed to ensure the longevity and efficiency of the pneumatic brake system in heavy commercial vehicles. By effectively removing moisture and contaminants from the compressed air stream, this complete air dryer valve maintains optimal operating pressure and protects downstream components from corrosion and frost damage.
This specific unit is engineered for high-duty cycles and is fully compatible with DAF and KNORR-BREMSE systems. It serves as a reliable OE equivalent for DAF references 1315688, 1315688A, 1315688R, 1351443, 1351443A, and 1351443R, as well as KNORR-BREMSE codes I98284, II37663, II37663N50, II37663N52, and LA8284. The 301.03.0014 is the OE equivalent of the DAF 1315688 DAF Complete, Air Dryer Valve used in heavy commercial vehicles.
Technical specifications include a 24 V heater for reliable performance in extreme temperatures and specialized port dimensions: Port 1 and Port 21 utilize M22x1,5 threads, while Port 4/23 and Port 22 utilize M16x1,5 threads. These dimensions ensure a precise fit within the existing pneumatic circuit to prevent leaks or pressure drops.
For workshop technicians and fleet managers, this component offers a stable solution for maintaining braking performance. Regular inspection of the air dryer assembly is recommended to ensure the moisture-separation process remains efficient under high-pressure demands of 9,8 BAR.
This specific unit is engineered for high-duty cycles and is fully compatible with DAF and KNORR-BREMSE systems. It serves as a reliable OE equivalent for DAF references 1315688, 1315688A, 1315688R, 1351443, 1351443A, and 1351443R, as well as KNORR-BREMSE codes I98284, II37663, II37663N50, II37663N52, and LA8284. The 301.03.0014 is the OE equivalent of the DAF 1315688 DAF Complete, Air Dryer Valve used in heavy commercial vehicles.
Technical specifications include a 24 V heater for reliable performance in extreme temperatures and specialized port dimensions: Port 1 and Port 21 utilize M22x1,5 threads, while Port 4/23 and Port 22 utilize M16x1,5 threads. These dimensions ensure a precise fit within the existing pneumatic circuit to prevent leaks or pressure drops.
For workshop technicians and fleet managers, this component offers a stable solution for maintaining braking performance. Regular inspection of the air dryer assembly is recommended to ensure the moisture-separation process remains efficient under high-pressure demands of 9,8 BAR.
Technical Specifications
| Heater | 24 V |
|---|---|
| Port 1 | M22x1,5 |
| Port 21 | M22x1,5 |
| Pressure | 9,8 BAR |
| Port 4/23 | M16x1,5 |
| Port 22 | M16x1,5 |
Other OEMs
DAF
- 1351443R
- 1351443A
- 1351443
- 1315688R
- 1315688A
- 1315688
KNORR-BREMSE
- LA8284
- LA 8284
- II37663N52
- II37663N50
- II37663
- I98284
Related Products
Repair Kits
Vehicles Used
| Brand | Model | Model Type | Engine |
|---|---|---|---|
| DAF | |||
| KNORR-BREMSE |
FAQ
What are the compatible OEM references for this part?
This part is compatible with the following OEM references: DAF 1315688, 1315688A, 1315688R, 1351443, 1351443A, 1351443R, KNORR-BREMSE I98284, II37663, II37663N50, II37663N52, and LA8284.
Is this air dryer valve suitable for heavy commercial vehicles?
Yes, it is specifically designed for heavy commercial vehicle brake systems (trucks/buses) requiring a 24 V power supply and high-pressure stability.
What are the technical port specifications?
The unit features two M22x1,5 ports (Port 1 and Port 21) and two M16x1,5 ports (Port 4/23 and Port 22) to ensure proper integration with existing pneumatic lines.
Does this component include a heater?
Yes, this complete air dryer valve is equipped with a 24 V heater to ensure reliable operation during cold weather conditions.
What is the primary function of this air dryer valve?
It filters moisture and contaminants from the compressed air to protect the pneumatic braking system from damage and ensure consistent performance.
